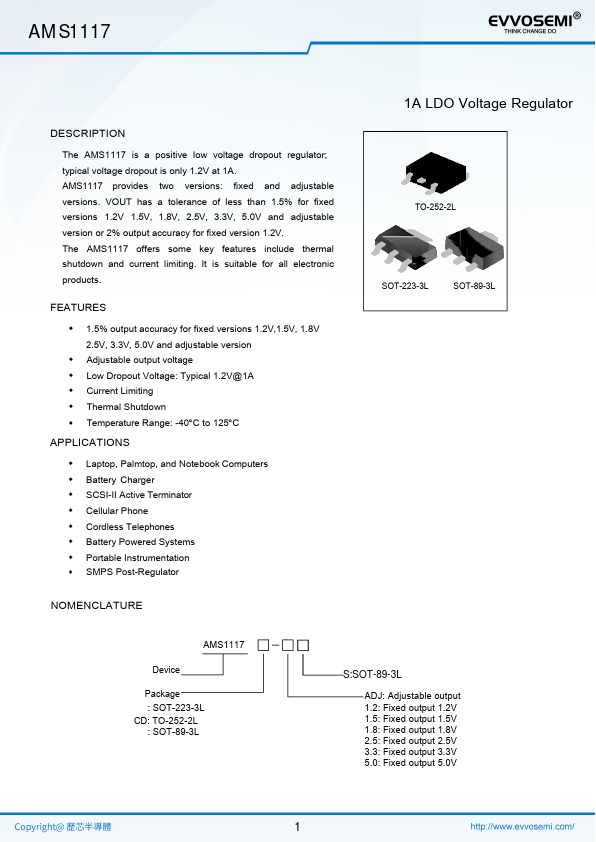

DESCRIPTION The AMS1117 is a positive low voltage dropout regulator; typical voltage dropout is only 1.2V at 1A. AMS1117 provides two versions: fixed and adjustable versions. VOUT has a tolerance of less than 1.5% for fixed versions 1.2V 1.5V, 1.8V, 2.5V, 3.3V, 5.0V and adjustable version or 2% output accuracy for fixed version 1.2V. The AMS1117 offers some key features include thermal shutdown and current limiting. It is suitable for all electronic products. FEATURES - 1.5% output accuracy for fixed versions 1.2V,1.5V, 1.8V 2.5V, 3.3V, 5.0V and adjustable version - Adjustable output voltage - Low Dropout Voltage: Typical 1.2V@1A - Current Limiting - Thermal Shutdown - Temperature Range: -40C to 125C APPLICATIONS - Laptop, Palmtop, and Notebook puters - Battery Charger - SCSI-II Active Terminator - Cellular Phone - Cordless Telephones - Battery Powered Systems - Portable Instrumentation - SMPS Post-Regulator NOMENCLATURE et 1A LDO Voltage Regulator TO-252-2L SOT-223-3L SOT-89-3L Device Package : SOT-223-3L CD: TO-252-2L : SOT-89-3L S:SOT-89-3L ADJ: Adjustable output 1.2: Fixed output 1.2V 1.5: Fixed output 1.5V 1.8: Fixed output 1.8V 2.5: Fixed output 2.5V 3.3: Fixed output 3.3V 5.0: Fixed output 5.0V BLOCK DIAGRAM 3 VIN 1A LDO Voltage Regulator Band Gap F1 A Current Limit VOUT 2 Fixed: F1 and F2 connect, disconnect A F2 Adj: A connect, F1 and F2 disconnect ADJ/GND ABSOLUTE MAXIMUM RATINGS Characteristics...
