EVVOSEMI BCP52
PNP Transistors
| Part No. | BCP52 |
|---|---|
| Datasheet | BCP52 Download |
| Manufacturer |  EVVOSEMI |
| Description | PNP Transistors |
| Buy | Stock & Price |

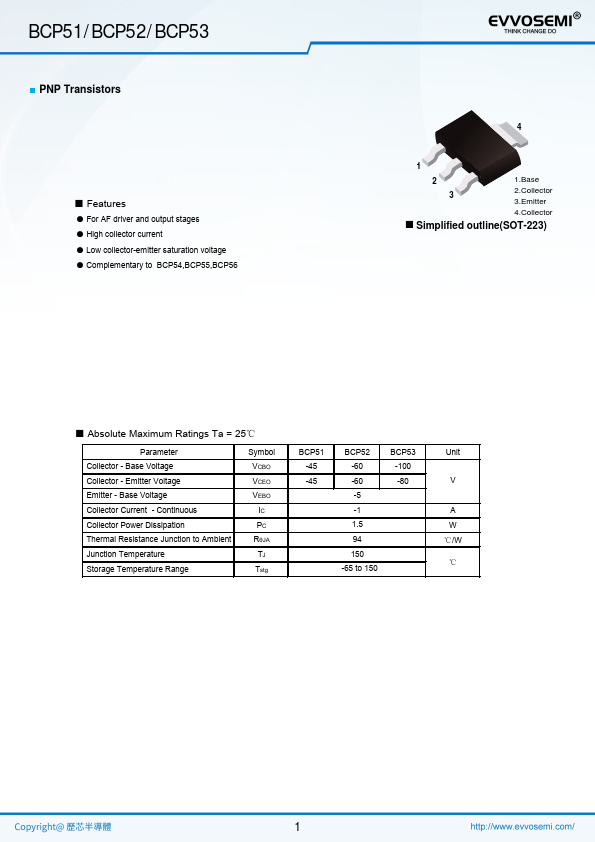

FEATURES
● For AF driver and output stages● High collector current
● Low collector-emitter saturation voltage
● Complementary to BCP54,BCP55,BCP56 4 1 2 3 1.Base 2.Collector 3.Emitter 4.Collector

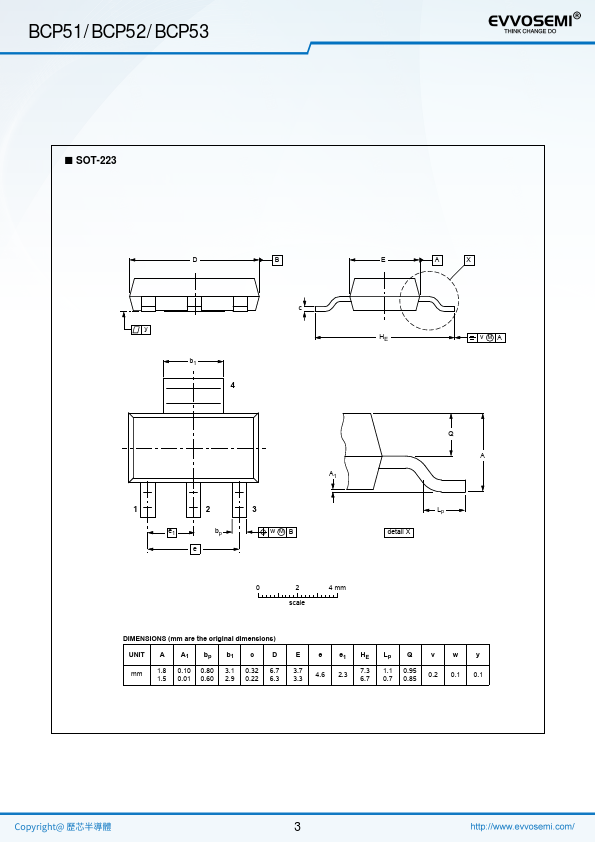

● Simplified outline(SOT-223)
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Thermal Resistance Junction to Ambient Junction Temperature Storage Temperature Range Symbol VCBO VCEO VEBO IC PC RθJA TJ Tstg BCP51 -45 -45 BCP52 -60 -60 -5 -1 1.5 94 150 -65 to 150 BCP53 -100 -80 Unit V A W ℃/W ℃ 1 BCP51/BCP52/BCP53●

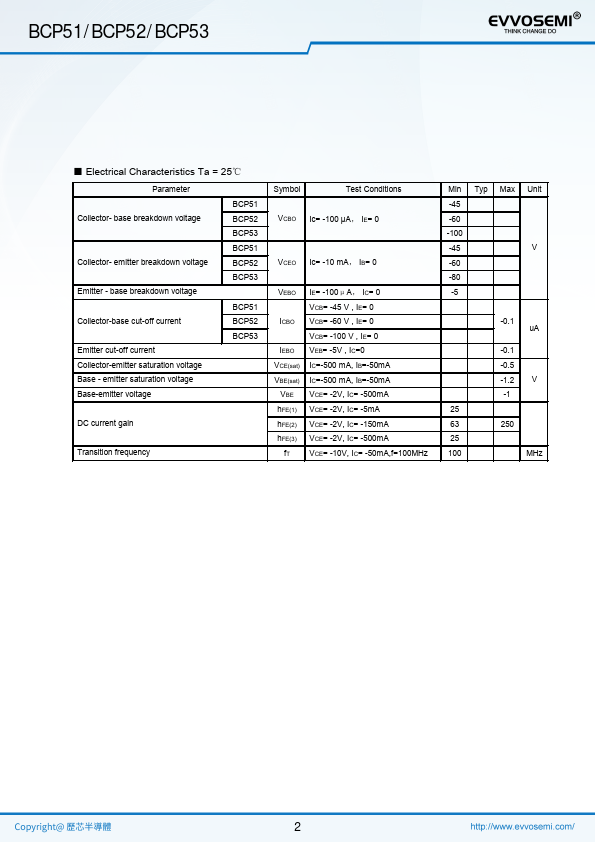

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage Base-emitter voltage BCP51 BCP52 BCP53 BCP51 BCP52 BCP53 BCP51 BCP52 BCP53 DC c...
