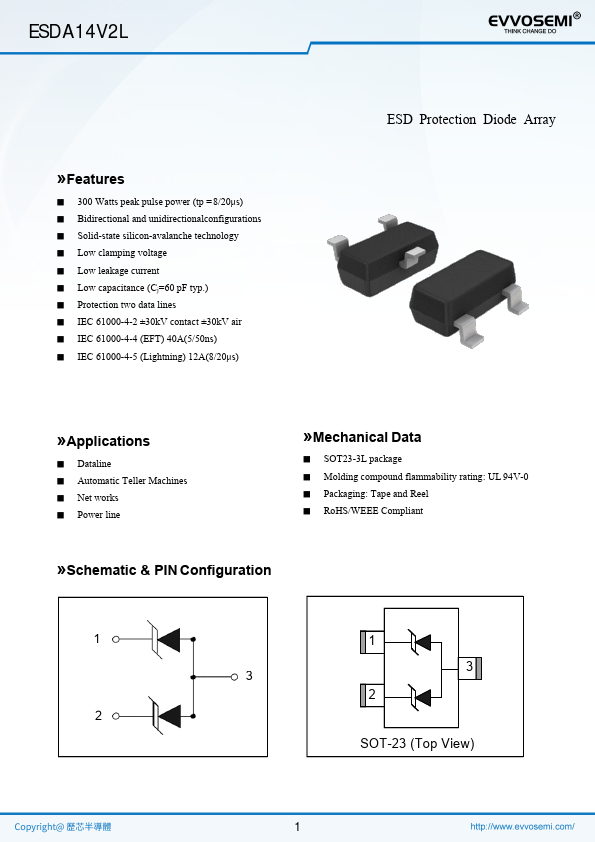

ESDA14V2L
Features
- 300 Watts peak pulse power (tp = 8/20μs)
- Bidirectional and unidirectionalconfigurations
- Solid-state silicon-avalanche technology
- Low clamping voltage
- Low leakage current
- Low capacitance (Cj=60 p F typ.)
- Protection two data lines
- IEC 61000-4-2 ±30k V contact ±30k V air
- IEC 61000-4-4 (EFT) 40A(5/50ns)
- IEC 61000-4-5 (Lightning) 12A(8/20μs)
ESD Protection Diode Array
»Applications
- Dataline
- Automatic Teller Machines
- Net works
- Power line
»Mechanical Data
- SOT23-3L package
- Molding pound flammability rating: UL 94V-0
- Packaging: Tape and Reel
- Ro HS/WEEE pliant
»Schematic & PIN Configuration
SOT-23 (Top View)
»Absolute Maximum Rating
Rating
Peak Pulse Power ( tp =8/20μs )
Peak Pulse Current ( tp =8/20μs )(note1) ESD per IEC 61000-4-2(Air) ESD per IEC 61000-4-2 (Contact) Lead Soldering Temperature
Junction Temperature
Storage Temperature
Symbol PPP Ipp VESD TL TJ Tstg
Value 300 12 30 30
260(10seconds) -55 to + 125 -55...
