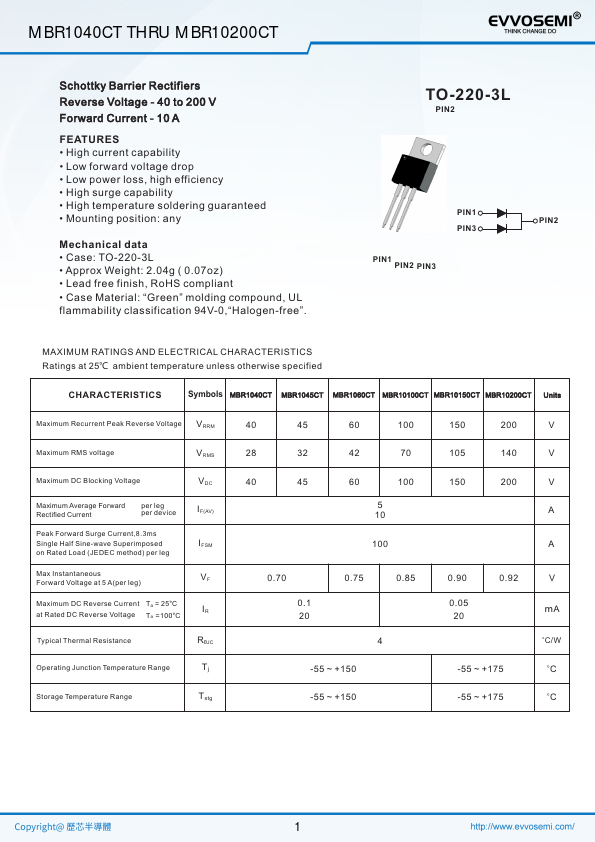

FEATURES - High current capability - Low forward voltage drop - Low power loss, high efficiency - High surge capability - High temperature soldering guaranteed - Mounting position: any Mechanical data - Case: TO-220-3L - Approx Weight: 2.04g ( 0.07oz) - Lead free finish, Ro HS pliant - Case Material: “Green” molding pound, UL flammability classification 94V-0,“Halogen-free”. TO-220-3L PIN2 PIN1 PIN3 PIN1 PIN2 PIN3 PIN2 MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25℃ ambient temperature unless otherwise specified CHARACTERISTICS Symbols MBR1040CT MBR1045CT MBR1060CT MBR10100CT MBR10150CT MBR10200CT Units Maximum Recurrent Peak Reverse Voltage VRRM Maximum RMS voltage VRMS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current per leg per device Peak Forward Surge Current,8.3ms Single Half Sine-wave Superimposed on Rated Load (JEDEC method) per leg I F ( AV ) IFSM Max Instantaneous Forward Voltage at 5 A(per leg) Maximum DC Reverse Current Ta = 25°C IR at Rated DC Reverse Voltage Ta =100°C Typical Thermal Resistance RθJC Operating Junction Temperature Range Tj Storage Temperature...
