MBR10200CT

Manufacturer: EVVO

MBR10200CT datasheet by EVVO.

This datasheet includes multiple variants, all published together in a single manufacturer document.

MBR10200CT Datasheet Details

Part number	MBR10200CT
Datasheet	MBR10200CT MBR1040CT Datasheet (PDF)
File Size	393.68 KB
Manufacturer	EVVO
Description	Schottky Barrier Rectifiers

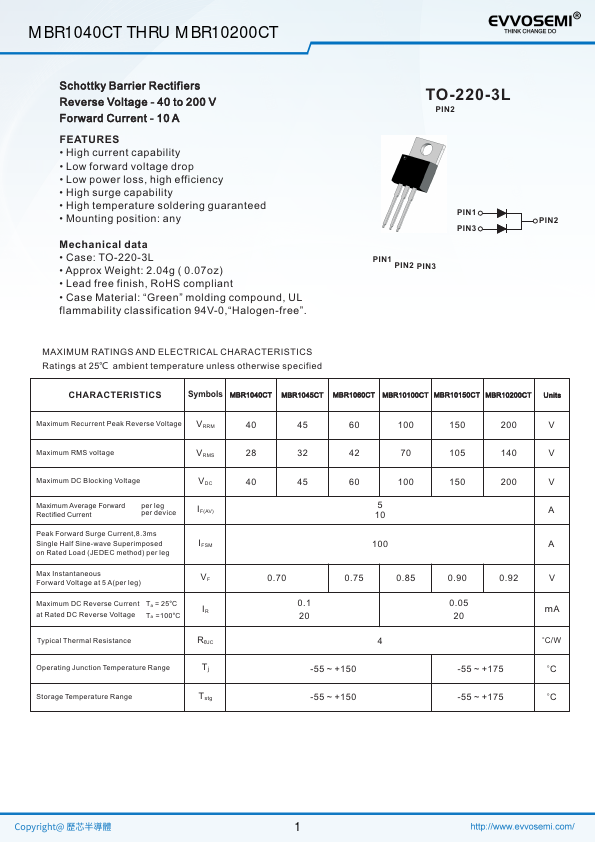

MBR1040CT THRU MBR10200CT Schottky Barrier Rectifiers Reverse Voltage - 40 to 200 V Forward Current - 10.

High current capability
Low forward voltage drop
Low power loss, high efficiency
High surge capability
High temperature soldering guaranteed
Mounting position: any

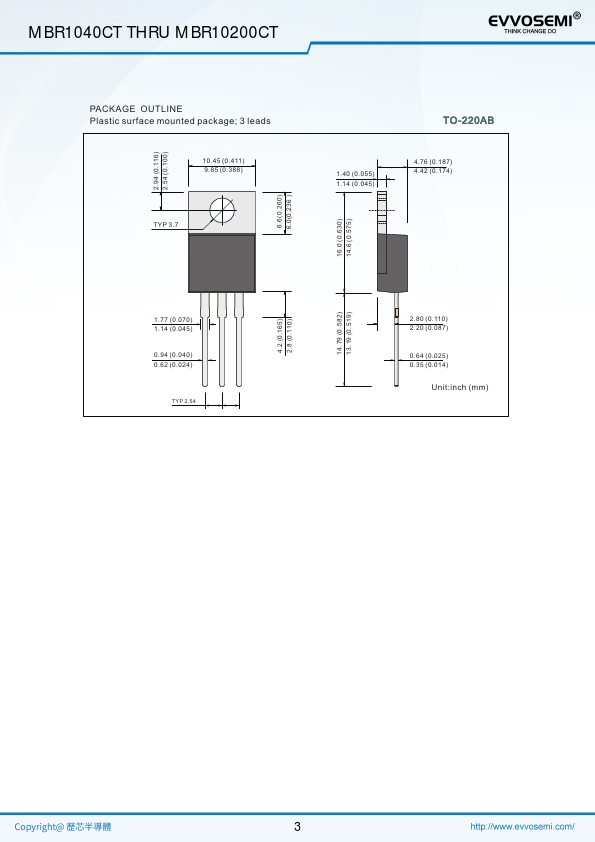

Case: TO-220-3L
Approx Weight: 2.04g ( 0.07oz)
Lead free finish, RoHS pliant
Case Material: “Green” molding pound, UL flammability classification 94V-0,“Halogen-free”

Part Number	Description	Other Manufacturers
MBR10200CT	Schottky Barrier Rectifier	Inchange Semiconductor
MBR10200CT	10A High Power Schottky Barrier Rectifiers	CITC
MBR10200CT	Schottky Barrier Rectifiers	MOSPEC
MBR10200CT	Schottky Rectifier	Luguang Electronic
MBR10200CT	Dual Common Cathode Schottky Rectifiers	Taiwan Semiconductor

Part Number	Description
MBR10100CT	Schottky Barrier Rectifiers
MBR10150CT	Schottky Barrier Rectifiers
MBR1040CT	Schottky Barrier Rectifiers
MBR1045CT	Schottky Barrier Rectifiers
MBR1060CT	Schottky Barrier Rectifiers
