MBR1040CT Datasheet Schottky Barrier Rectifiers

Manufacturer: EVVO

Overview: MBR1040CT THRU MBR10200CT Schottky Barrier Rectifiers Reverse Voltage - 40 to 200 V Forward Current - 10.

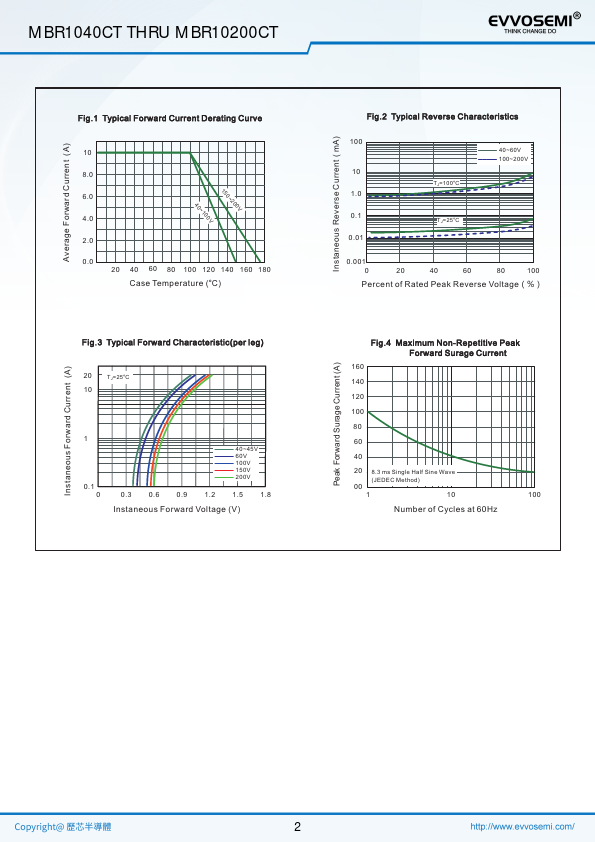

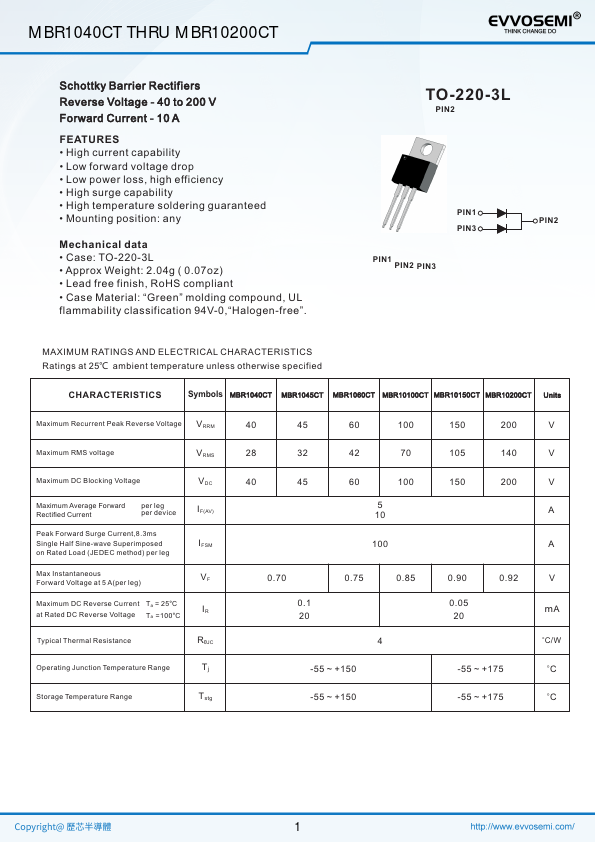

MBR1040CT datasheet preview

Datasheet Details

Part number	MBR1040CT
Manufacturer	EVVO
File Size	393.68 KB
Description	Schottky Barrier Rectifiers
Datasheet	MBR1040CT-EVVOSEMI.pdf

Key Features

High current capability.
Low forward voltage drop.
Low power loss, high efficiency.
High surge capability.
High temperature soldering guaranteed.
Mounting position: any Mechanical data.

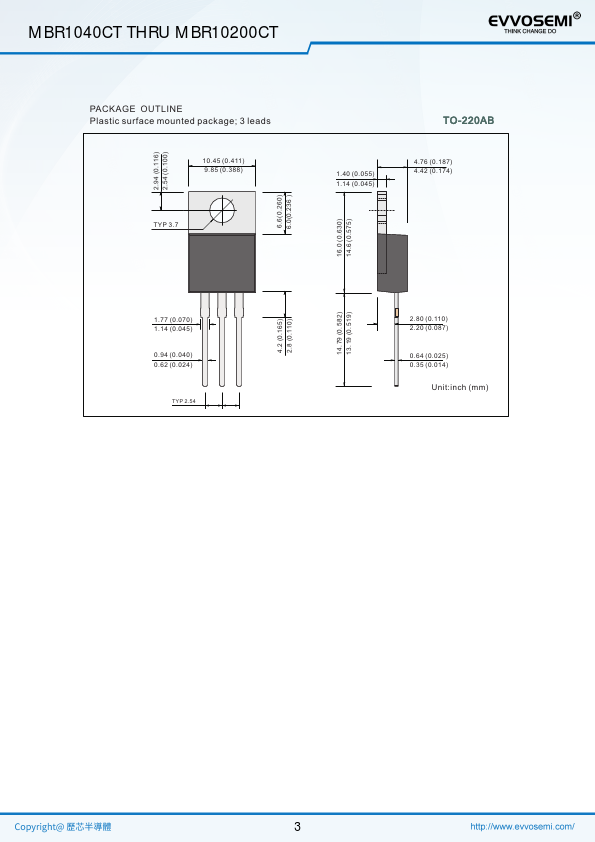

Case: TO-220-3L.
Approx Weight: 2.04g ( 0.07oz).
Lead free finish, RoHS compliant.
Case Material: “Green” molding compound, UL flammability classification 94V-0,“Halogen-free”. TO-220-3L PIN2 PIN1 PIN3 PIN1 PIN2 PIN3 PIN.
