MBR1060CT Datasheet Schottky Barrier Rectifiers

Manufacturer: EVVO

Overview: MBR1040CT THRU MBR10200CT Schottky Barrier Rectifiers Reverse Voltage - 40 to 200 V Forward Current - 10.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • High current capability.
  • Low forward voltage drop.
  • Low power loss, high efficiency.
  • High surge capability.
  • High temperature soldering guaranteed.
  • Mounting position: any Mechanical data.

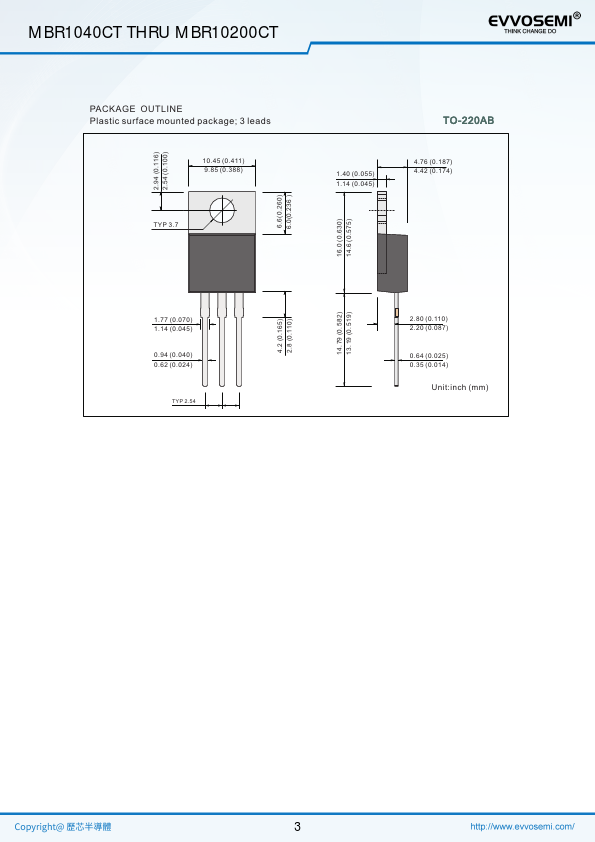

  • Case: TO-220-3L.
  • Approx Weight: 2.04g ( 0.07oz).
  • Lead free finish, RoHS compliant.
  • Case Material: “Green” molding compound, UL flammability classification 94V-0,“Halogen-free”. TO-220-3L PIN2 PIN1 PIN3 PIN1 PIN2 PIN3 PIN.
