RB520S-30 Overview
Key Specifications
Package: SOD-523-2
Pins: 2
Height: 700 µm
Length: 1.3 mm
Description

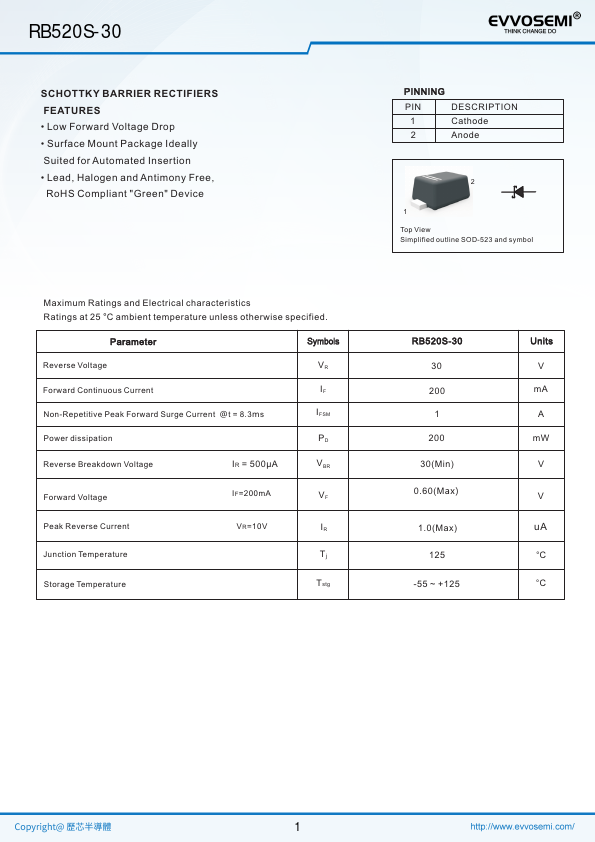

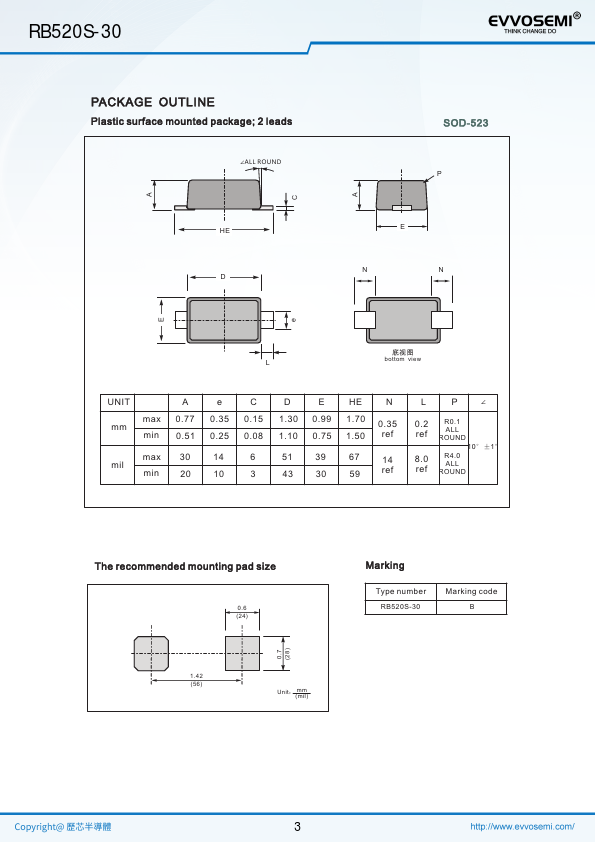

1 Cathode 2 Anode 2 1 Top View Simplified outline SOD-523 and symbol RB520S-30 30 200 1 200 30(Min) 0.60(Max) 1.0(Max) 125 -55 ~ +125 Units V mA A mW V V uA °C °C 1 RB520S-30 Power Dissipation PD (mW) Fig.1 Power Derating Curve 250 200 150 100 50 0 25 50 75 100 125 150 175 Ambient Temperature Ta (°C) Fig.3 Typical Forward Characteristic 200 100 10 =25°C Ta 1.0 0.1 0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8 2.0 Forward Voltage VF (V) Instaneous Reverse Current (uA) Fig.2 Typical Instaneous Reverse Characteristics 100 10 1 0.1 Ta=25°C 0.01 0 5 10 15 20 25 30 35 40 Instaneous Reverse Voltage (V) Forward Current IF (mA) 2 RB520S-30 PACKAGE OUTLINE Plastic surface mounted package; 2 leads ∠ALL ROUND HE D C A SOD-523 P E N N A E e L bottom view UNIT max mm min A 0.77 0.51 e 0.35 0.25 C 0.15 0.08 D 1.30 1.10 E 0.99 0.75 HE N 1.70 0.35 1.50 ref max 30 14 mil 6 51 39 67 14 min 20 10 3 43 30 59 ref L P ∠ 0.2 R0.1 ref ALL ROUND 1 0° ±1° 8.0 R4.0 ALL ref ROUND The recommended mounting pad size 0.6 (24) Marking Type number RB520S-30 Marking code B (28) 0.7 1.42 (56) Unit： mm (mil) 3 RB520S-30 4.
Key Features
- Low Forward Voltage Drop
- Surface Mount Package Ideally Suited for Automated Insertion
- Lead, Halogen and Antimony Free, RoHS Compliant "Green" Device
