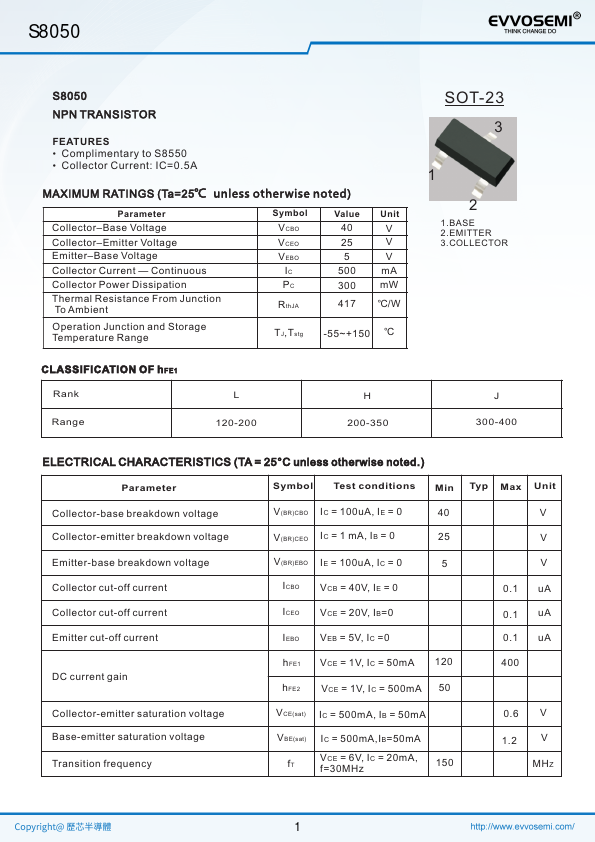

S8050 NPN TRANSISTOR
Features
- plimentary to S8550
- Collector Current: IC=0.5A
MAXIMUM RATINGS (Ta=25℃ unless other wise noted)
Parameter Collector- Base Voltage Collector- Emitter Voltage Emitter- Base Voltage Collector Current
- Continuous Collector Power Dissipation Thermal Resistance From Junction To Ambient
Symbol VCBO VCEO VEBO IC PC
RthJA
Value 40 25 5 500 300
Unit V V V mA mW
℃/W
Operation Junction and Storage Temperature Range
TJ,Tstg -55~+150 ℃
CLASSIFICATION OF hFE1
Rank Range
L 120-200
H 200-350

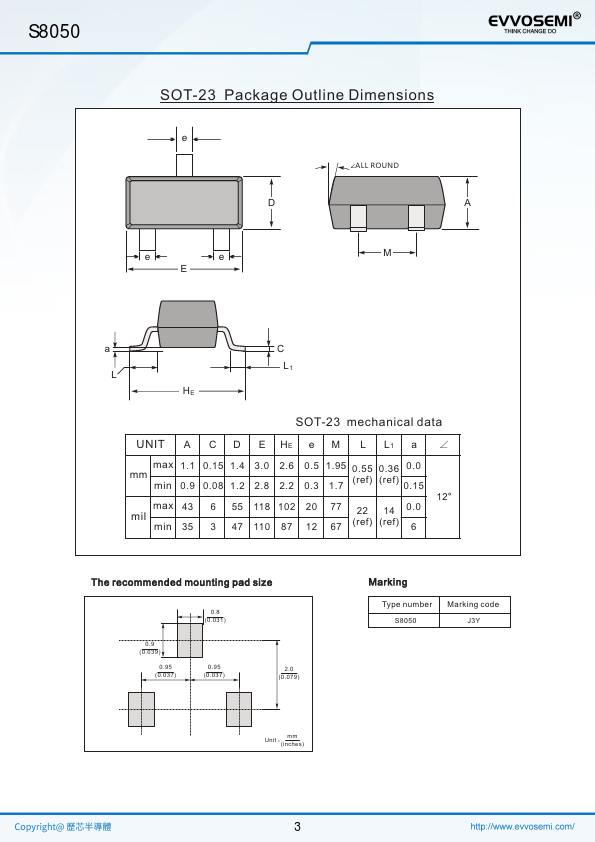

SOT-23 3
1 2
1.BASE 2.EMITTER 3.COLLECTOR
J 300-400
ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted.)
Parameter
Symbol Test conditions Min Typ...
