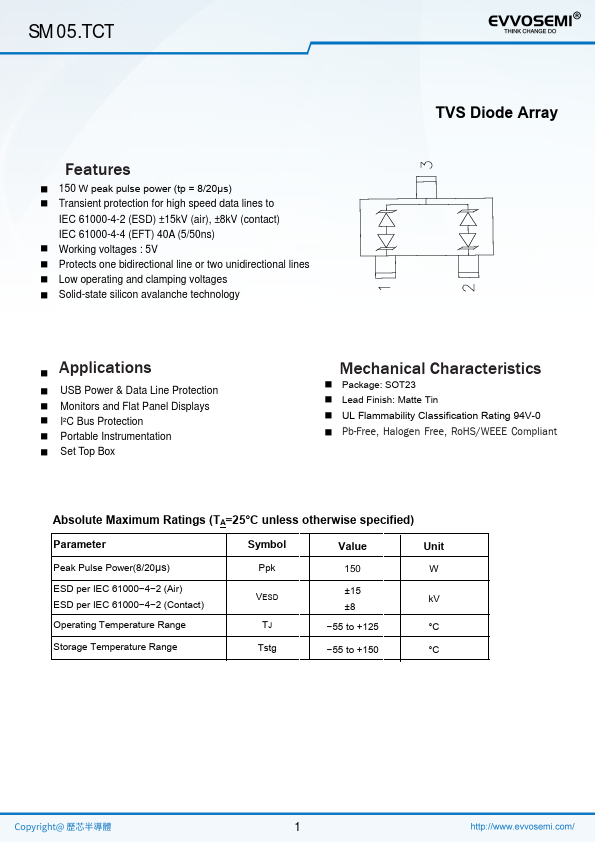

SM05.TCT
Features
- 150 W peak pulse power (tp = 8/20μs)
- Transient protection for high speed data lines to
IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns)
- Working voltages : 5V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
TVS Diode Array
- Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Mechanical Characteristics
- Package: SOT23
- Lead Finish: Matte Tin
- UL Flammability Classification Rating 94V-0
- Pb-Free, Halogen Free, Ro HS/WEEE pliant
Absolute Maximum Ratings (TA=25°C unless otherwise specified)
Parameter
Symbol
Value
Unit
Peak Pulse Power(8/20µs) ESD per IEC 61000- 4- 2 (Air) ESD per IEC 61000- 4- 2 (Contact) Operating Temperature Range
Ppk
VESD
±15 k V
±8
- 55 to +125
°C
Storage Temperature Range
Tstg
- 55 to...
