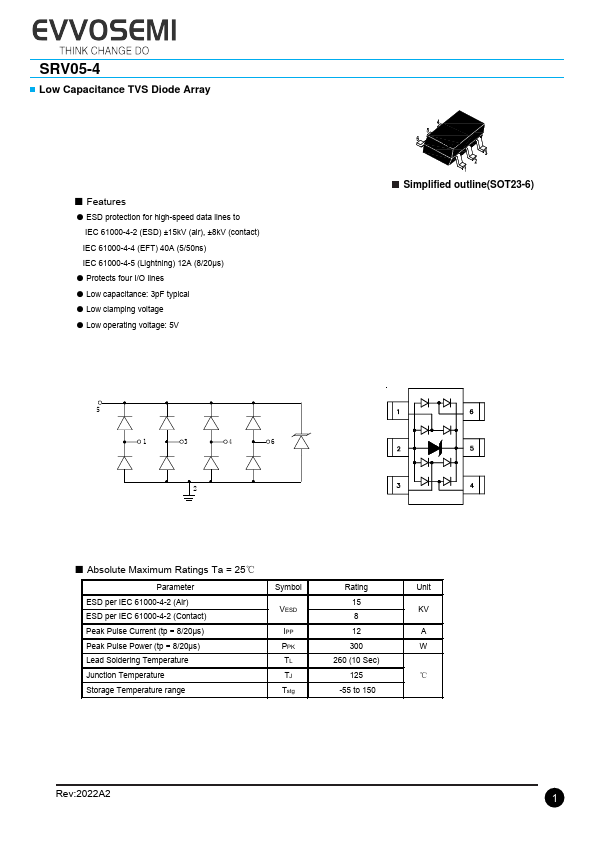

SRV05-4
Features
- ESD protection for high-speed data lines to IEC 61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC 61000-4-4 (EFT) 40A (5/50ns) IEC 61000-4-5 (Lightning) 12A (8/20μs)
- Protects four I/O lines
- Low capacitance: 3p F typical
- Low clamping voltage
- Low operating voltage: 5V
Simplified outline(SOT23-6)
- Absolute Maximum Ratings Ta = 25℃
Parameter ESD per IEC 61000-4-2 (Air) ESD per IEC 61000-4-2 (Contact) Peak Pulse Current (tp = 8/20μs) Peak Pulse Power (tp = 8/20μs) Lead Soldering Temperature Junction Temperature Storage Temperature range
Symbol
Rating
Unit
VESD
260 (10 Sec)
℃
Tstg
-55 to 150
Rev:2022A2

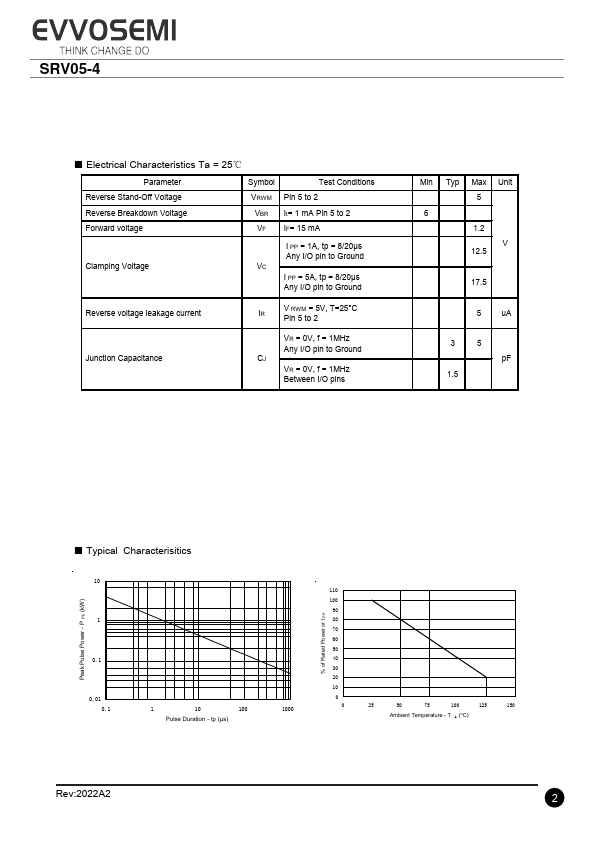

- Electrical Characteristics Ta = 25℃
Parameter Reverse Stand-Off Voltage Reverse Breakdown Voltage Forward voltage
Symbol
Test Conditions
VRWM Pin 5 to 2
VBR It= 1 m A Pin 5 to 2
VF IF= 15 m A
Clamping Voltage
I PP = 1A, tp = 8/20μs Any I/O pin to Ground VC
I PP = 5A, tp =...
