EMP8110 - 1.5A Fixed Voltage LDO Linear Regulator

Datasheet Summary

Description

The EMP8110 is a CMOS low-dropout linear regulator that operates in the input voltage range from +2.5V to +6.5V and delivers 1.5A output current.

Features

  • include short-circuit Features           Operating Voltage Range：+2.5V to +6.5V Output Voltages：+1.2V to +4.5V (0.1V Step) Maximum Output Current：1.5A Dropout Voltage：570mV @ 1.5A(Vout=1.8V) Low Current Consumption：65µA (Typ. ) ±2% Output Voltage Accuracy Low ESR Capacitor Compatible High Ripple Rejection：60 dB (Vout=1.8V) Fold back short circuit protection Thermal Overload Shutdown Protection SOT-223 and TO-252 Packages RoHS Compliant and 100% Lead (Pb)-Free and Green (Halogen Free wi.

📥 Download Datasheet

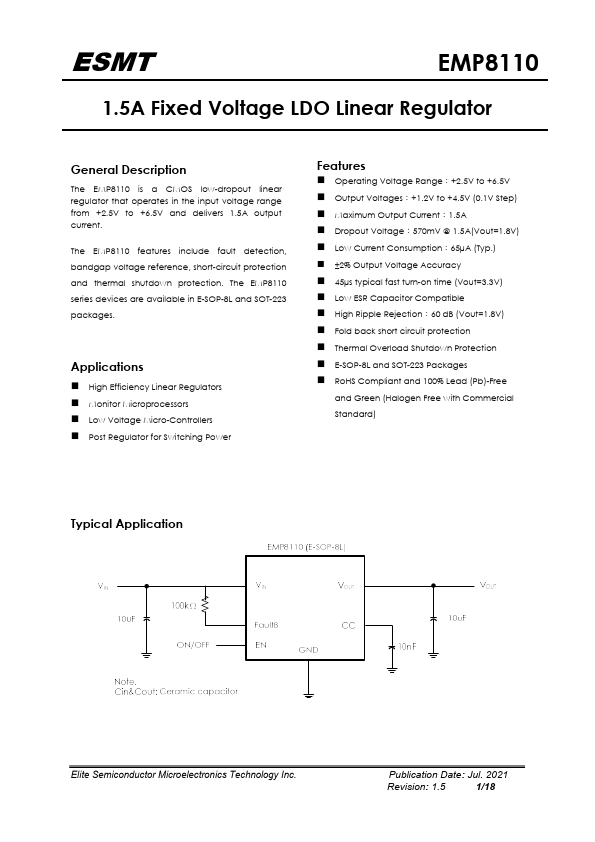

Datasheet preview – EMP8110

Datasheet Details

Part number EMP8110
Manufacturer Elite Semiconductor
File Size 329.79 KB
Description 1.5A Fixed Voltage LDO Linear Regulator
Datasheet download datasheet EMP8110 Datasheet
Additional preview pages of the EMP8110 datasheet.

📁 Similar Datasheet

  • EMP8165 - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP8165A - 2A Ultra Low Dropout Voltage Regulator (ESMT)
  • EMP85N10CS - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP85N10H - Single N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP-8603 - Mini-PCI Adapter (EnGenius)
  • EMP11 - Switching diode (Rohm)
  • EMP16N04HS - MOSFET (Excelliance MOS)
  • EMP18K03HPCS - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPC - Dual N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
  • EMP19K03HPCS - N-Channel Logic Level Enhancement Mode Field Effect Transistor (Excelliance MOS)
Other Datasheets by Elite Semiconductor
  • EMP8130 - 300mA CMOS Linear Regulator
  • EMP8020 - 300mA CMOS Linear Regulator
  • EMP8021 - 600mA CMOS Linear Regulator
  • EMP8040 - Low-Dropout Linear Regulator
  • EMP8041 - Low-Dropout Linear Regulator
  • EMP8042 - Low-Dropout Linear Regulator
  • EMP8046 - 50mA Ultra-Low Quiescent Current LDO Linear Regulator
  • EMP8731 - 300mA CMOS Linear Regulator

Full PDF Text Transcription

Click to expand full text
ESMT Preliminary EMP8110 1.5A Fixed Voltage LDO Linear Regulator General Description The EMP8110 is a CMOS low-dropout linear regulator that operates in the input voltage range from +2.5V to +6.5V and delivers 1.5A output current. The EMP8110 features include short-circuit Features           Operating Voltage Range：+2.5V to +6.5V Output Voltages：+1.2V to +4.5V (0.1V Step) Maximum Output Current：1.5A Dropout Voltage：570mV @ 1.5A(Vout=1.8V) Low Current Consumption：65µA (Typ.) ±2% Output Voltage Accuracy Low ESR Capacitor Compatible High Ripple Rejection：60 dB (Vout=1.
