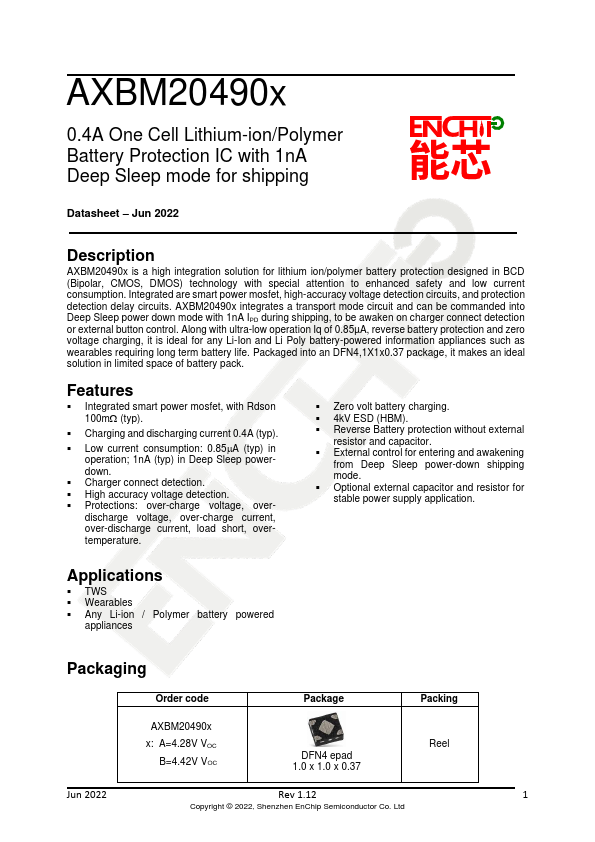

Datasheet Summary
AXBM20490x
0.4A One Cell Lithium-ion/Polymer Battery Protection IC with 1nA Deep Sleep mode for shipping
- Jun 2022
Description
AXBM20490x is a high integration solution for lithium ion/polymer battery protection designed in BCD (Bipolar, CMOS, DMOS) technology with special attention to enhanced safety and low current consumption. Integrated are smart power mosfet, high-accuracy voltage detection circuits, and protection detection delay circuits. AXBM20490x integrates a transport mode circuit and can be manded into Deep Sleep power down mode with 1nA IPD during shipping, to be awaken on charger connect detection or external button control. Along with ultra-low operation Iq of...
