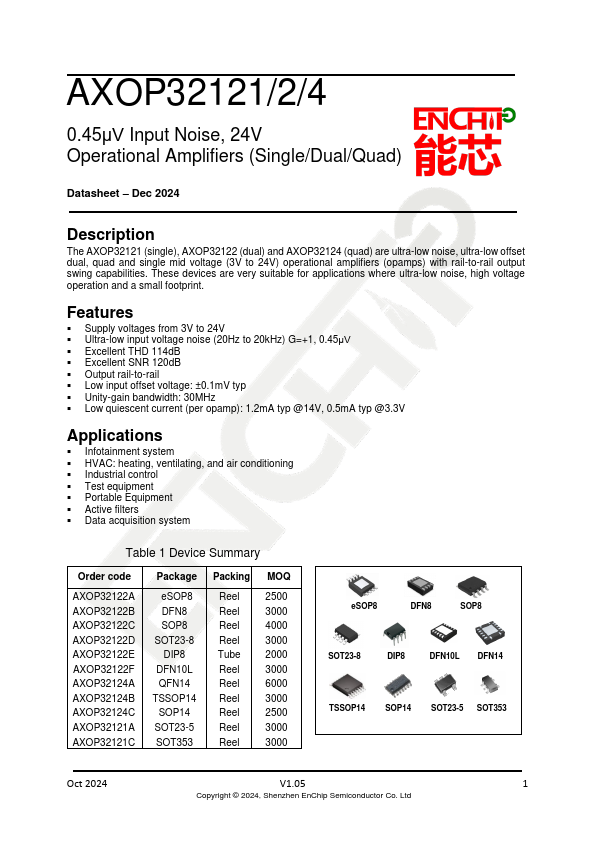

Datasheet Summary
AXOP32121/2/4
0.45μV Input Noise, 24V Operational Amplifiers (Single/Dual/Quad)
- Dec 2024
Description
The AXOP32121 (single), AXOP32122 (dual) and AXOP32124 (quad) are ultra-low noise, ultra-low offset dual, quad and single mid voltage (3V to 24V) operational amplifiers (opamps) with rail-to-rail output swing capabilities. These devices are very suitable for applications where ultra-low noise, high voltage operation and a small footprint.
Features
- Supply voltages from 3V to 24V
- Ultra-low input voltage noise (20Hz to 20kHz) G=+1, 0.45μV
- Excellent THD 114dB
- Excellent SNR 120dB
- Output rail-to-rail
- Low input offset voltage: ±0.1mV typ
- Unity-gain bandwidth: 30MHz
- Low...
