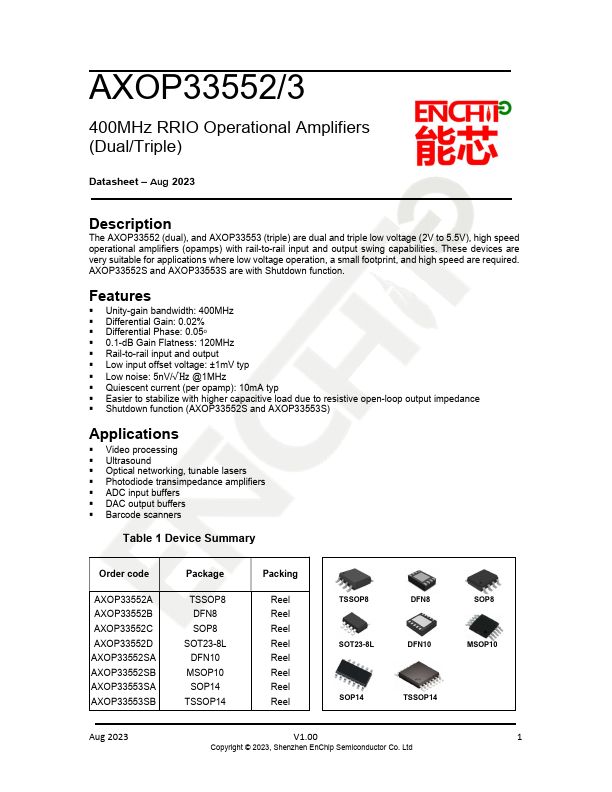

EnChip AXOP33553
The AXOP33552 (dual), and AXOP33553 (triple) are dual and triple low voltage (2V to 5.5V), high speed operational amplifiers (opamps) with rail-to-rail input and output swing capabilities. These devices are very suitable for applications where low voltage operation, a small footprint, and high speed are required.| Part No. | AXOP33553 |
|---|---|
| Datasheet | AXOP33553 Download |
| Manufacturer | EnChip |
| Description | 500MHz RRIO Operational Amplifiers |
| Buy | Stock & Price |
DESCRIPTION
AXOP33552S and AXOP33553S are with Shutdown function.FEATURES
● Unity-gain bandwidth: 400MHz● Differential Gain: 0.02%
● Differential Phase: 0.05o
● 0.1-dB Gain Flatness: 120MHz
● Rail-to-rail input and output
● Low input offset voltage: ±1mV typ
● Low noise: 5nV/√Hz @1MHz
● Quiescent current (per opamp): 10mA typ
● Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
● Shutdown function (AXOP33552S and AXOP33553S)
APPLICATIONS
● Video processing● Ultrasound
● Optical networking, tunable lasers
● Photodiode transimpedance amplifiers
● ADC input buffers
● DAC output buffers
● Barcode scanners Table 1 Device Summary Order code AXOP33552A AXOP33552B AXOP33552C AXOP33552D AXOP33552SA AXOP33552SB AXOP33553SA AXOP33553SB Package TSSOP8 DFN8 SOP8 SOT23-8L DFN10 MSOP10 SOP14 TSSOP14 Packing Reel Reel Reel Reel Reel Reel Reel Reel TSSOP8 DFN8 SOP8 SOT23-8L DFN10 MSOP10 SOP14 TSSOP14 Aug 2023 V1.00 1 Copyright © 2023, Shenzhen EnChip Semiconductor Co.
