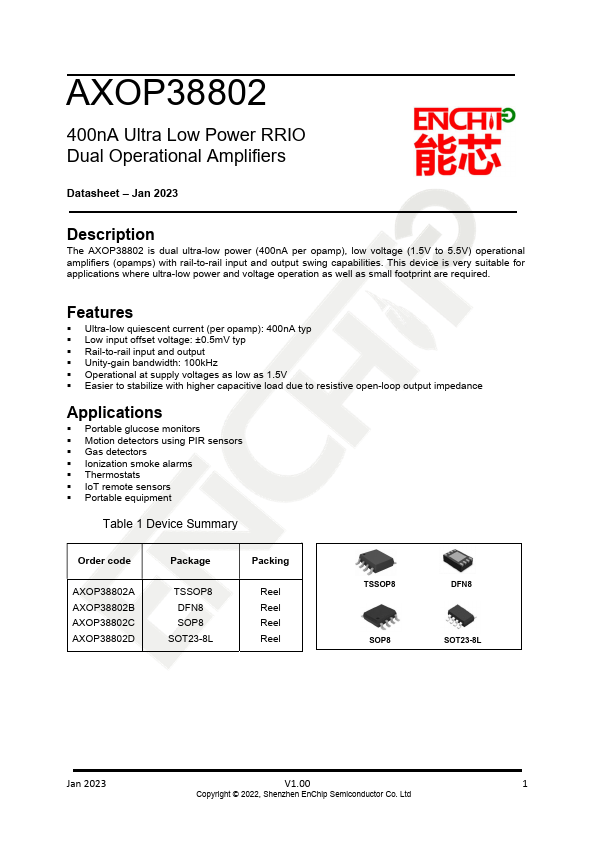

EnChip AXOP38802
The AXOP38802 is dual ultra-low power (400nA per opamp), low voltage (1.5V to 5.5V) operational amplifiers (opamps) with rail-to-rail input and output swing capabilities. This device is very suitable for applications where ultra-low power and voltage operation as well as small footprint are required.| Part No. | AXOP38802 |
|---|---|
| Datasheet | AXOP38802 Download |
| Manufacturer | EnChip |
| Description | 400nA Ultra Low Power RRIO Dual Operational Amplifiers |
| Buy | Stock & Price |
DESCRIPTION
FEATURES
● Ultra-low quiescent current (per opamp): 400nA typ● Low input offset voltage: ±0.5mV typ
● Rail-to-rail input and output
● Unity-gain bandwidth: 100kHz
● Operational at supply voltages as low as 1.5V
● Easier to stabilize with higher capacitive load due to resistive open-loop output impedance
APPLICATIONS
● Portable glucose monitors● Motion detectors using PIR sensors
● Gas detectors
● Ionization smoke alarms
● Thermostats
● IoT remote sensors

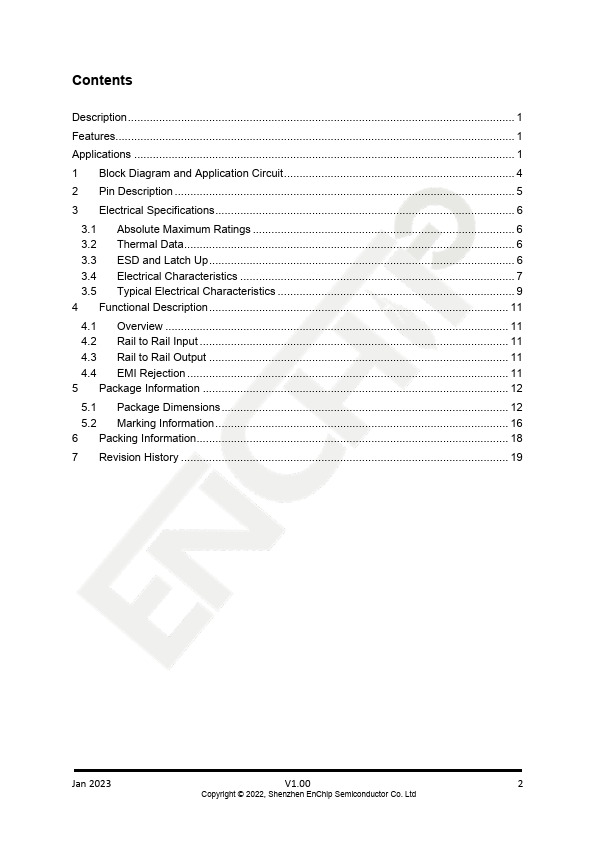

● Portable equipment Table 1 Device Summary Order code AXOP38802A AXOP38802B AXOP38802C AXOP38802D Package TSSOP8 DFN8 SOP8 SOT23-8L Packing Reel Reel Reel Reel TSSOP8 DFN8 SOP8 SOT23-8L Jan 2023 V1.00 1 Copyright © 2022, Shenzhen EnChip Semiconductor Co. Ltd Contents
DESCRIPTION
............................................................................................................................ 1FEATURES
................................................................................................................................
