AXPM65611 - 200mA Triple DC-DC Converter

Description

AXPM65611 is a triple DC-DC converter designed to drive AMOLED display panel requiring 3 supply rails.

It integrates an 200mA step-up converter VPOS, an 200mA inverting converter VNEG and an 20mA auxiliary LDO AVDD.

Features

  • Operating input voltage range from 2.9V to 4.5V.
  • Step-up converter (VPOS).
  • 4.6V output voltage.
  • 200mA output current.
  • 0.5% accuracy (25°C to 85°C).
  • Inverting converter (VNEG).
  • -1.4V to -4.4V programmable output voltage (-2.2V default).
  • 200mA output current.
  • LDO (AVDD).
  • 3.3V default or lower of Vin.
  • 20mA output current.
  • Efficiencies >90%.
  • Excellent line and load regulation.
  • Short circuit protection.

📥 Download Datasheet

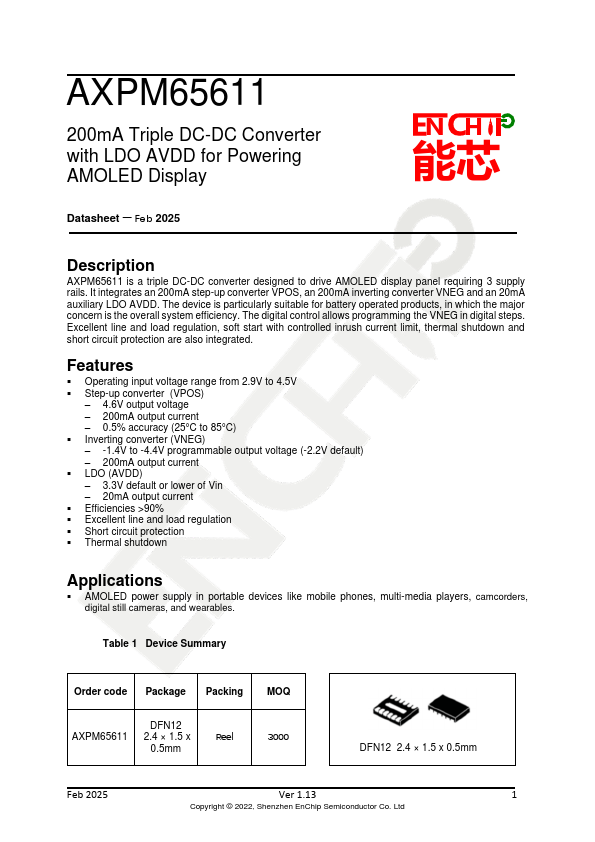

Datasheet preview – AXPM65611

Datasheet Details

Part number AXPM65611
Manufacturer EnChip
File Size 1.00 MB
Description 200mA Triple DC-DC Converter
Datasheet download datasheet AXPM65611 Datasheet
