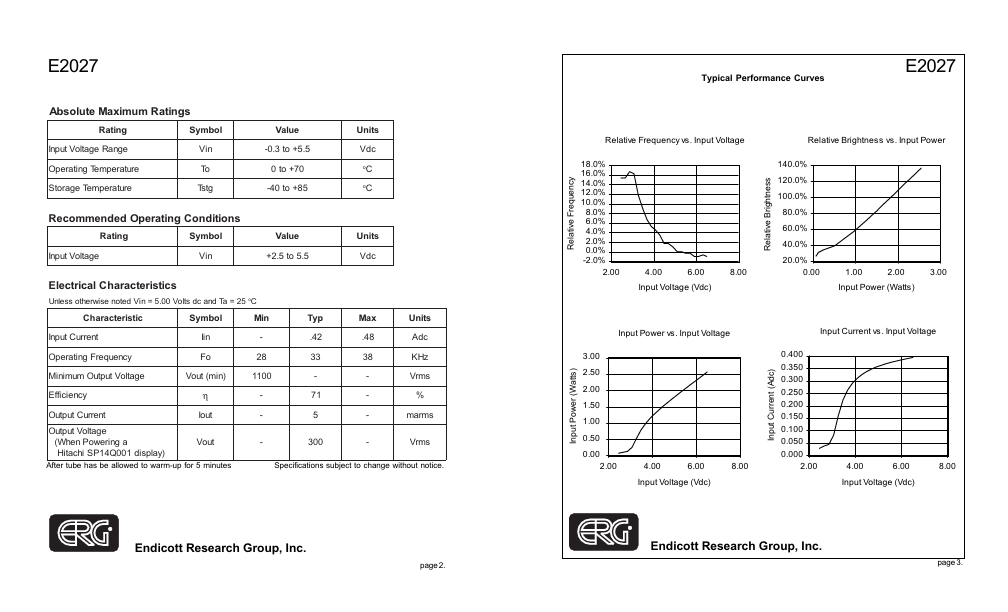

THIS PAGE LEFT BLANK INTENTIONALLY Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 page 4. Endicott Research Group, Inc. 2601 Wayne St., Endicott NY 13760 607-754-9187 Fax 607-754-9255 http://.ergpower. Specifications and Applications Information 03/21/01 Preliminary Single Tube DC to AC Inverter The ERG E2027 (E200II Series) dc to ac inverter is specifically designed to power the Hitachi SP14Q001 LCD display module to a moderate brightness level from a +5 volt dc source. The E2027’s small size, encapsulated package and low input power requirements makes it the ideal power source for battery applications where small size, high efficiency and reliability are critical. This standard inverter is designed to satisfy the most mon cold-cathode lighting requirements for the SP14Q001 display. Custom units, providing different inputs, outputs or package refinements are available. E200 Package Package Configuration .15[3,8] Min 1.26[32,0]...
