EG-2102CA
EG-2102CA is LOW-JITTER SAW OSCILLATOR manufactured by Epson.
Crystal oscillator

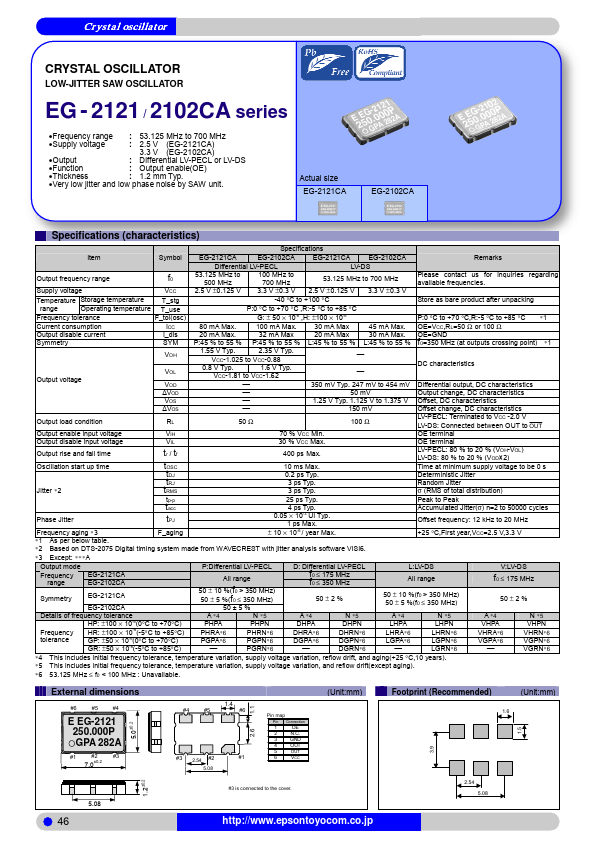

CRYSTAL OSCILLATOR
LOW-JITTER SAW OSCILLATOR
- 2121 / 2102CA series
- Frequency range : 53.125 MHz to 700 MHz
- Supply voltage
: 2.5 V (EG-2121CA)
: 3.3 V (EG-2102CA)
- Output
: Differential LV-PECL or LV-DS
- Function
: Output enable(OE)
- Thickness
: 1.2 mm Typ.
- Very low jitter and low phase noise by SAW unit.
Actual size EG-2121CA
Specifications (characteristics)
Specifications
Item
Symbol EG-2121CA
EG-2121CA
Remarks
Differential LV-PECL
LV-DS
Output frequency range f0
53.125 MHz to 500 MHz
100 MHz to 700 MHz
53.125 MHz to 700 MHz
Please contact us for inquiries regarding available frequencies.
Supply voltage
2.5 V ±0.125 V 3.3 V ±0.3 V 2.5 V ±0.125 V 3.3 V ±0.3 V
Temperature Storage temperature
T_stg
-40 °C to +100 °C
Store as bare product after unpacking range
Operating temperature T_use
P:0 °C to +70 °C ,R:-5 °C to +85 °C
Frequency tolerance Current consumption Output disable current...
