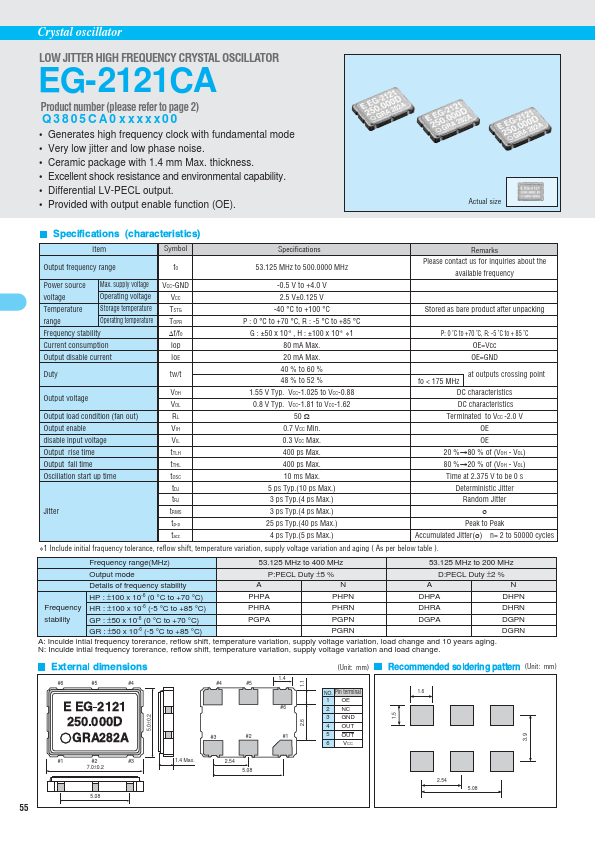

EG-2121CA
EG-2121CA is LOW JITTER HIGH FREQUENCY CRYSTAL OSCILLATOR manufactured by Epson.
Crystal oscillator
LOW JITTER HIGH FREQUENCY CRYSTAL OSCILLATOR
Product number (please refer to page 2) Q3805CA0 xxxxx00
- Generates high frequency clock with fundamental mode
- Very low jitter and low phase noise.
- Ceramic package with 1.4 mm Max. thickness.
- Excellent shock resistance and environmental capability.
- Differential LV-PECL output.
- Provided with output enable function (OE).
Actual size
Specifications (characteristics)
Item
Symbol
Output frequency range f0
Power source Max. supply voltage voltage
Operating voltage
Temperature Storage temperature range
Operating temperature
Frequency stability
Current consumption
VCC-GND VCC TSTG TOPR ∆f/f0 Iop
Specifications
53.125 MHz to 500.0000 MHz
-0.5 V to +4.0 V 2.5 V±0.125 V -40 °C to +100 °C P : 0 °C to +70 °C, R : -5 °C to +85 °C G : ±50 x 10-6 , H : ±100 x 10-6 ∗1 80 m A Max.
Remarks Please contact us for inquiries about the available frequency
Stored as bare product after unpacking
P: 0 ˚C to +70 ˚C, R: -5 ˚C to + 85 ˚C OE=Vcc
Output disable current
Io E
Duty tw/t
20 m A Max. 40 % to 60 % 48 % to 52 %
OE=GND at outputs crossing point fo < 175 MHz
VOH Output voltage
Output load condition (fan out)
Output enable
VIH disable input voltage
Output rise time t...
