ESP32-P4 Description

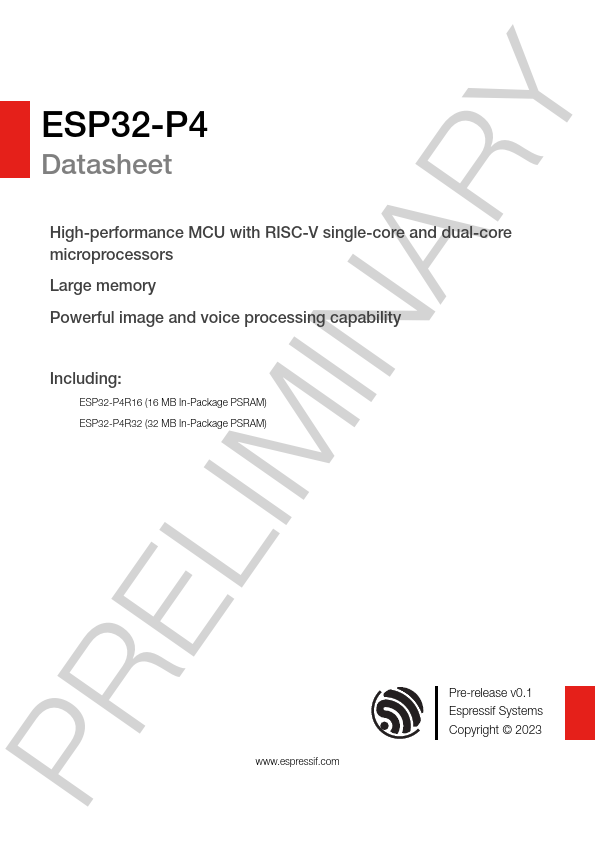

PRELIMINARY ESP32-P4 Datasheet High-performance MCU with RISC-V single-core and dual-core microprocessors Large memory Powerful image and voice processing capability Including: ESP32-P4R16 (16 MB In-Package PSRAM) ESP32-P4R32 (32 MB In-Package PSRAM) .espressif. Pre-release v0.1 Espressif Systems Copyright © 2023 PRELIMINARY Product Overview ESP32-P4 is a high-performance MCU that supports large internal memory and...
ESP32-P4 Key Features
- Cryptographic hardware accelerators that support AES-128/192/256, RSA, HMAC, ECC, digital signature, and secure boot
- Key manager based on physically unclonable function (PUF)
- True Random Number Generator (TRNG)
- PMP and PMA
- Permission control on accessing internal
- External memory encryption and decryption
- Espressif’s High Performance MCU
ESP32-P4 Applications
- 32-bit RISC-V dual-core processor up to 400 MHz with AI instruction extension and FPU for the HP system
- 32-bit RISC-V single-core processor up to 40 MHz for the LP system
- 128 KB of HP ROM, 16 KB of LP ROM, 768 KB of HP L2MEM, 32 KB of LP SRAM, and 8 KB system tightly-coupled memory (TCM), allowing for zero-wait access
