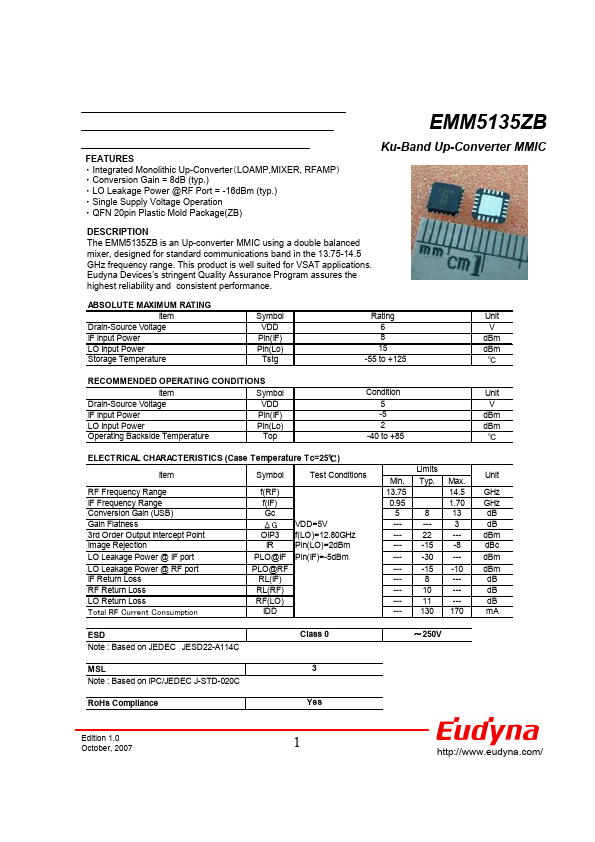

Datasheet Summary
Features
- Integrated Monolithic Up-Converter（LOAMP,MIXER, RFAMP）
- Conversion Gain = 8dB (typ.)
- LO Leakage Power @RF Port = -16dBm (typ.)
- Single Supply Voltage Operation
- QFN 20pin Plastic Mold Package(ZB)
Ku-Band Up-Converter MMIC
Device
DESCRIPTION The EMM5135ZB is an Up-converter MMIC using a double balanced mixer, designed for standard munications band in the 13.75-14.5 GHz frequency range. This product is well suited for VSAT applications. Eudyna Devices’s stringent Quality Assurance Program assures the highest reliability and consistent performance.
