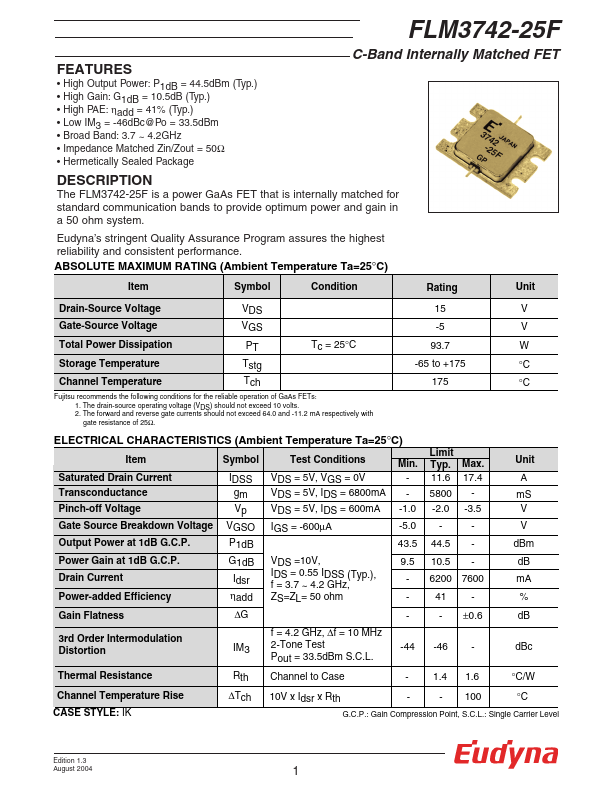

FLM3742-25F Description
The FLM3742-25F is a power GaAs FET that is internally matched for standard munication bands to provide optimum power and gain in a 50 ohm system. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. RATING (Ambient Temperature Ta=25°C) Item Symbol Condition Rating Unit Drain-Source Voltage Gate-Source Voltage VDS VGS 15 V -5 V Total Power Dissipation PT Tc = 25°C...
FLM3742-25F Key Features
- High Output Power: P1dB = 44.5dBm (Typ.)
- High Gain: G1dB = 10.5dB (Typ.)
- High PAE: ηadd = 41% (Typ.)
- Low IM3 = -46dBc@Po = 33.5dBm
- Broad Band: 3.7 ~ 4.2GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
