FLM5964-45F - C-Band Internally Matched FET

General Description

The FLM5964-45F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50Ω system.

.

Key Features

  • High Output Power: P1dB=47.0dBm(Typ. ) High Gain: G1dB=8.5dB(Typ. ) High PAE: ηadd=39%(Typ. ) Broad Band: 5.9~6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package.

📥 Download Datasheet

Datasheet Details

Part number FLM5964-45F
Manufacturer Eudyna Devices
File Size 313.81 KB
Description C-Band Internally Matched FET
Datasheet download datasheet FLM5964-45F Datasheet

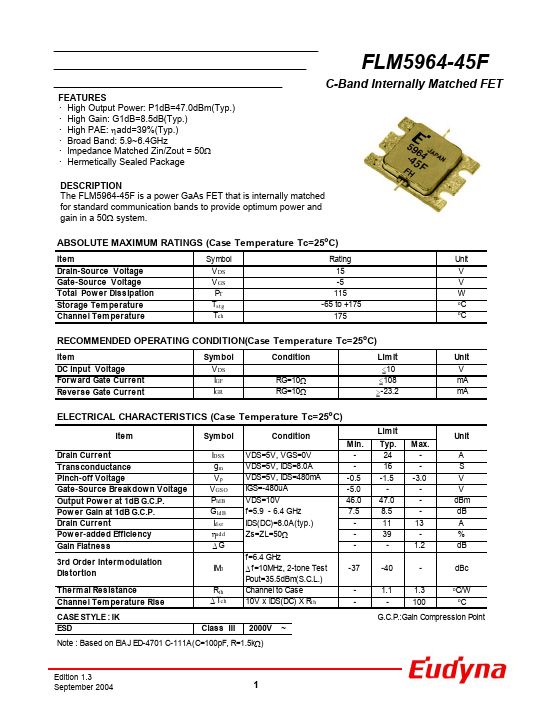

Full PDF Text Transcription for FLM5964-45F (Reference)

Note: Below is a high-fidelity text extraction (approx. 800 characters) for FLM5964-45F. For precise diagrams, and layout, please refer to the original PDF.

FEATURES High Output Power: P1dB=47.0dBm(Typ.) High Gain: G1dB=8.5dB(Typ.) High PAE: ηadd=39%(Typ.) Broad Band: 5.9~6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically S...

View more extracted text
Broad Band: 5.9~6.4GHz Impedance Matched Zin/Zout = 50Ω Hermetically Sealed Package DESCRIPTION The FLM5964-45F is a power GaAs FET that is internally matched for standard communication bands to provide optimum power and gain in a 50Ω system. w w w .D a t a S e e h U t4 .
