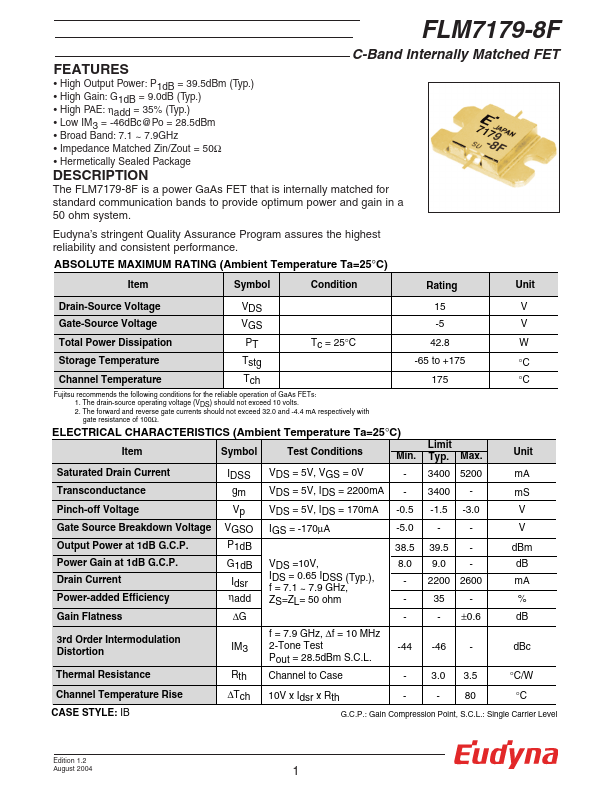

FLM7179-8F Description
The FLM7179-8F is a power GaAs FET that is internally matched for standard munication bands to provide optimum power and gain in a 50 ohm system. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. RATING (Ambient Temperature Ta=25°C) Item Symbol Condition Rating Unit Drain-Source Voltage Gate-Source Voltage VDS VGS 15 V -5 V Total Power Dissipation PT Tc = 25°C...
FLM7179-8F Key Features
- High Output Power: P1dB = 39.5dBm (Typ.)
- High Gain: G1dB = 9.0dB (Typ.)
- High PAE: ηadd = 35% (Typ.)
- Low IM3 = -46dBc@Po = 28.5dBm
- Broad Band: 7.1 ~ 7.9GHz
- Impedance Matched Zin/Zout = 50Ω
- Hermetically Sealed Package
