FMM5010VF Overview

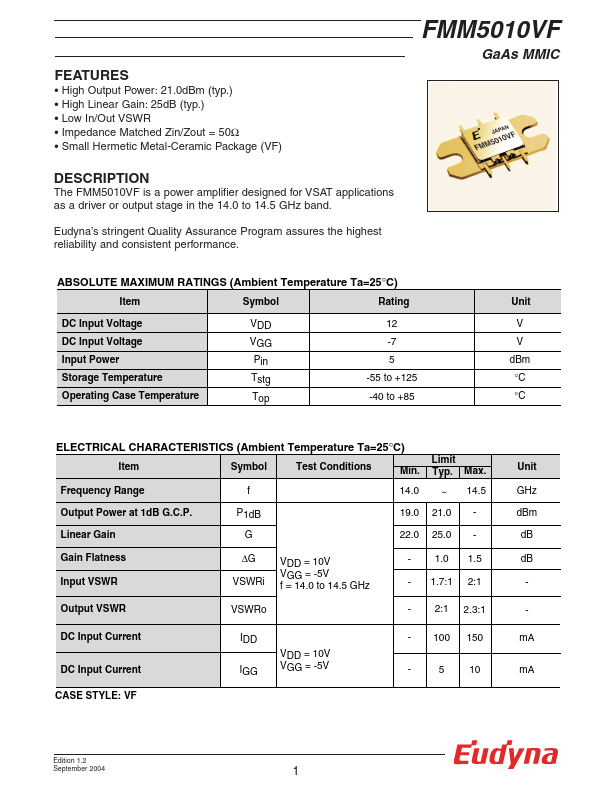

The FMM5010VF is a power amplifier designed for VSAT applications as a driver or output stage in the 14.0 to 14.5 GHz band. Eudyna’s stringent Quality Assurance Program assures the highest reliability and consistent performance. FMM5010VF GaAs MMIC RATINGS (Ambient Temperature Ta=25°C) Item Symbol Rating DC Input Voltage DC Input Voltage Input Power Storage Temperature Operating Case Temperature VDD VGG Pin Tstg Top...
FMM5010VF Key Features
- High Output Power: 21.0dBm (typ.)
- High Linear Gain: 25dB (typ.)
- Low In/Out VSWR
- Impedance Matched Zin/Zout = 50Ω
- Small Hermetic Metal-Ceramic Package (VF)
