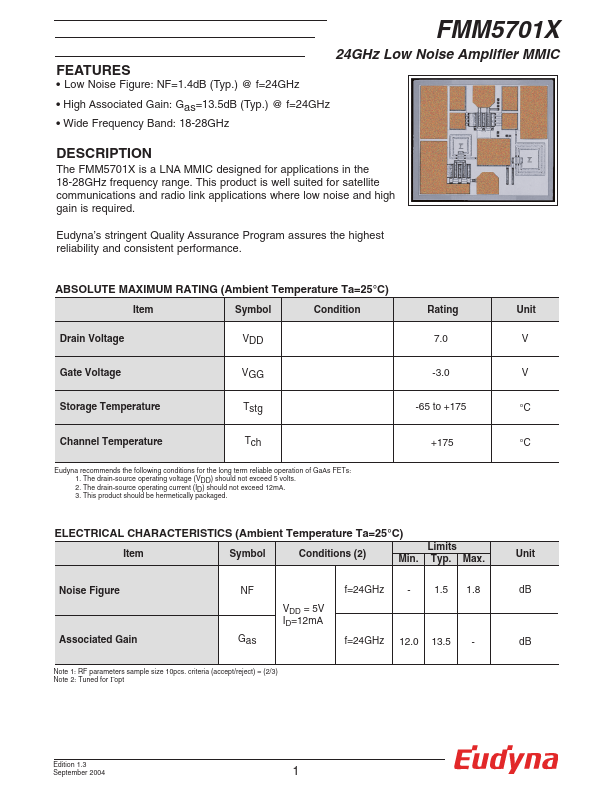

FMM5701X Key Features
- Low Noise Figure: NF=1.4dB (Typ.) @ f=24GHz
- High Associated Gain: Gas=13.5dB (Typ.) @ f=24GHz
- Wide Frequency Band: 18-28GHz
- Part: FMM5701X
- Description: 24GHz Low Noise Amplifier MMIC
- Manufacturer: Eudyna Devices
- Size: 450.52 KB
Other FMM5701X Datasheets
| Manufacturer | Part Number | Description |
|---|---|---|
Fujitsu Semiconductor Limited |
FMM5701X | 24GHz Low Noise Amplifier MMIC |
|
Fujitsu Semiconductor Limited |
FMM5701LG | LNA MMIC |
