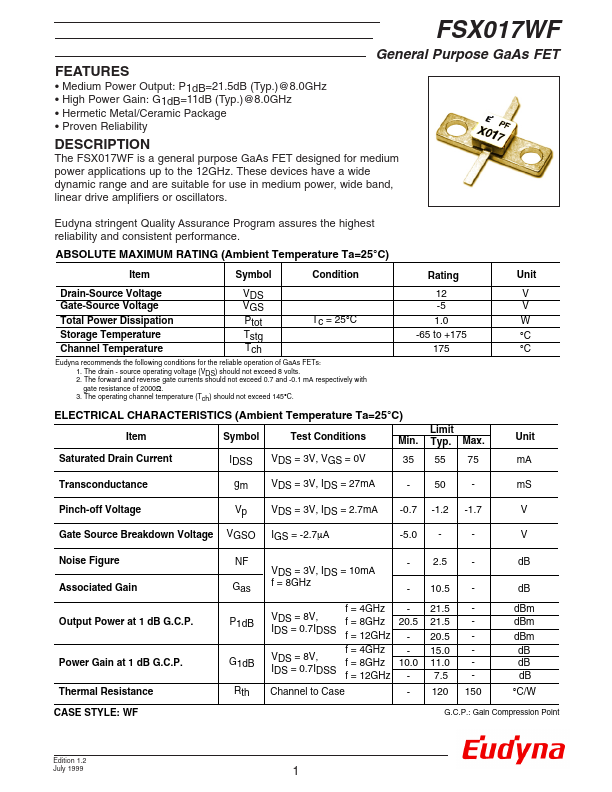

Datasheet Summary
General Purpose GaAs FET Features
- Medium Power Output: P1dB=21.5dB (Typ.)@8.0GHz
- High Power Gain: G1dB=11dB (Typ.)@8.0GHz
- Hermetic Metal/Ceramic Package
- Proven Reliability
DESCRIPTION
The FSX017WF is a general purpose GaAs FET designed for medium power applications up to the 12GHz. These devices have a wide dynamic range and are suitable for use in medium power, wide band, linear drive amplifiers or oscillators.
Eudyna stringent Quality Assurance Program assures the highest reliability and consistent...
