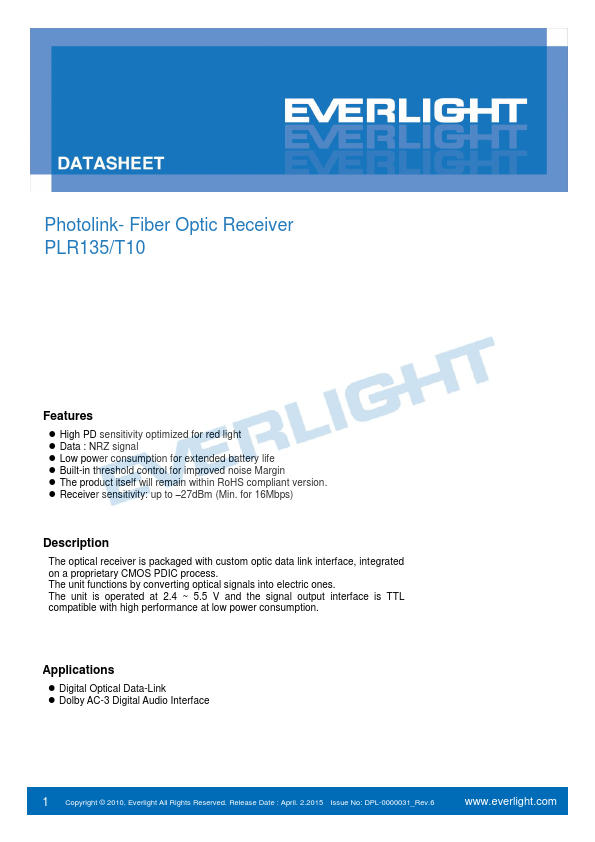

Everlight Electronics PLR135-T10
the PLR135 device, please confirm the minimum sensitivity at different operating voltage and transmission rate.| Part No. | PLR135-T10 |
|---|---|
| Datasheet | PLR135-T10 Download |
| Manufacturer |  Everlight Electronics |
| Description | Photolink- Fiber Optic Receiver |
| Buy | Stock & Price |
FEATURES
● High PD sensitivity optimized for red light● Data : NRZ signal
● Low power consumption for extended battery life
● Built-in threshold control for improved noise Margin
● The product itself will remain within RoHS compliant version.
● Receiver sensitivity: up to –27dBm (Min. for 16Mbps)
DESCRIPTION
The optical receiver is packaged with custom optic data link interface, integrated on a proprietary CMOS PDIC process. The unit functions by converting optical signals into electric ones. The unit is operated at 2.4 ~ 5.5 V and the signal output interface is TTL compatible with high performance at low power consumption.APPLICATIONS
● Digital Optical Data-Link● Dolby AC-3 Digital Audio Interface 1 Copyright © 2010, Everlight All Rights Reserved. Release Date : April. 2.2015 Issue No: DPL-0000031_Rev.6 DATASHEET Photolink- Fiber Optic Receiver PLR135/T10

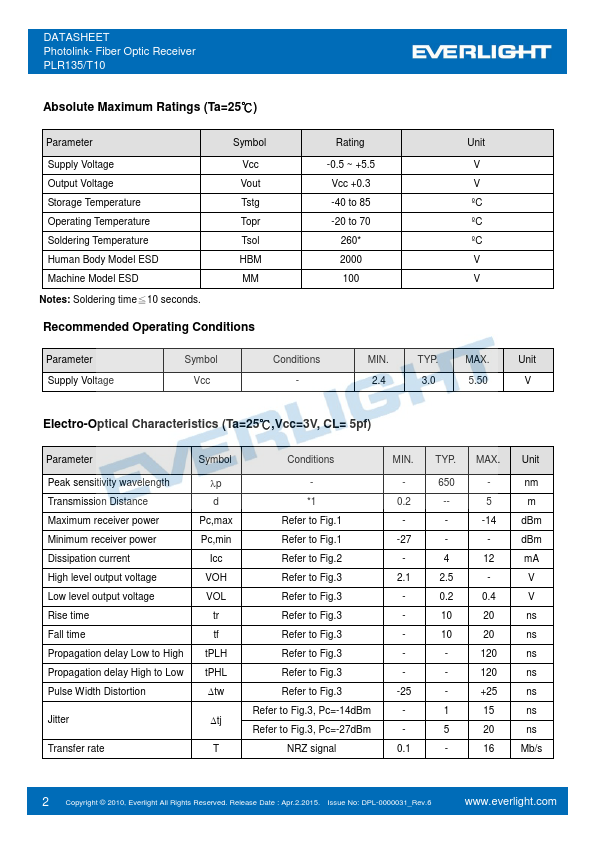

ABSOLUTE MAXIMUM RATINGS
(Ta=25℃) Parameter Symbol Rating Unit Supply Voltage Vcc -0.5 ~ +5.5 V Output Voltage Vout Vcc +0.3 V S...
