MST6M181-V1
MST6M181-V1 is LCD controller manufactured by FINDER ELECTRONICS.
- Part of the MST6M181 comparator family.
- Part of the MST6M181 comparator family.

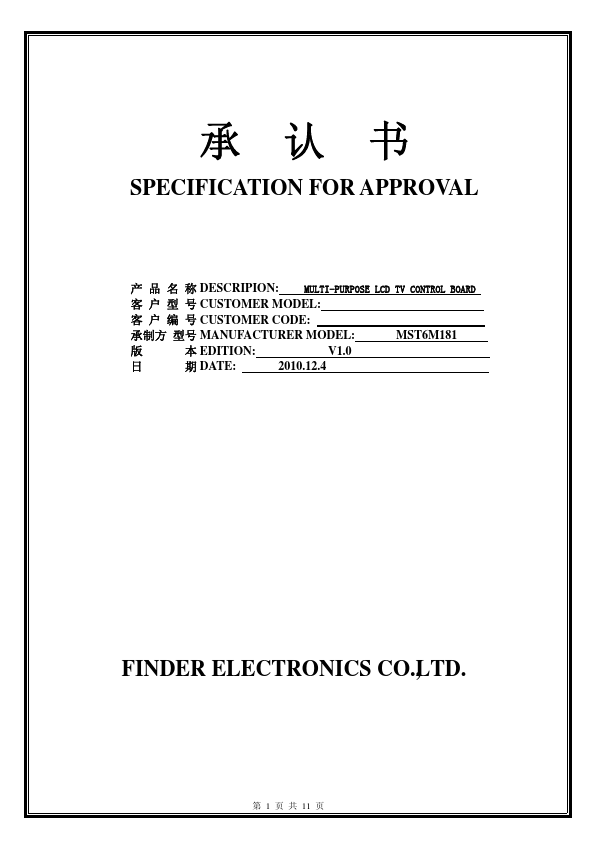

承认书
SPECIFICATION FOR APPROVAL
产 品 名 称 DESCRIPION: MULTI-PURPOSE LCD TV CONTROL BOARD
客 户 型 号 CUSTOMER MODEL:
客 户 编 号 CUSTOMER CODE:
承制方 型号 MANUFACTURER MODEL:
MST6 M181
版
本 EDITION:
V1.0
日
期 DATE:
FINDER ELECTRONICS CO.L, TD.
第 1 页 共 11 页

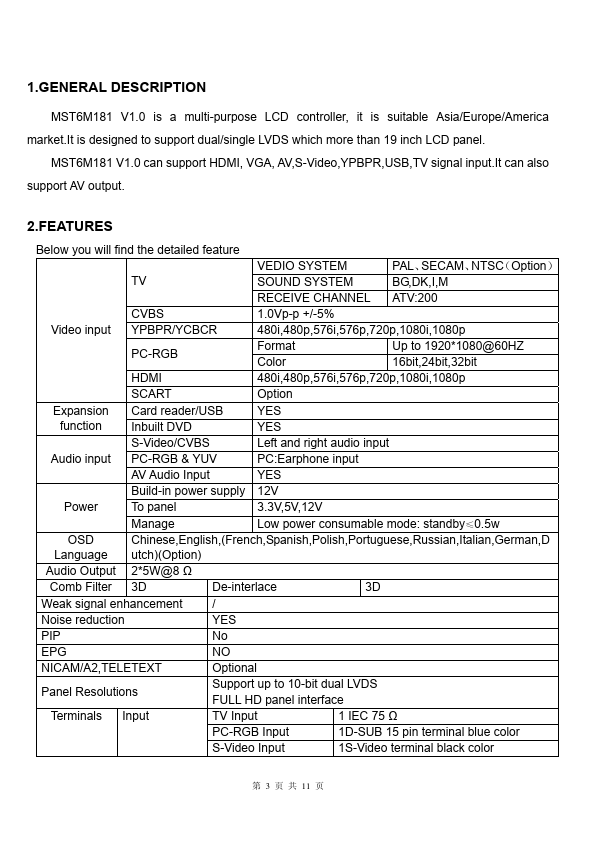

1.GENERAL DESCRIPTION
MST6M181 V1.0 is a multi-purpose LCD controller, it is suitable Asia/Europe/America market.It is designed to support dual/single LVDS which more than 19 inch LCD panel.
MST6M181 V1.0 can support HDMI, VGA, AV,S-Video,YPBPR,USB,TV signal input.It can also support AV output.
2.Features
Below you will find the detailed feature
VEDIO SYSTEM
PAL、SECAM、NTSC（Option）
SOUND SYSTEM
BG,DK,I,M
RECEIVE CHANNEL ATV:200
CVBS
1.0Vp-p +/-5%
Video input YPBPR/YCBCR
480i,480p,576i,576p,720p,1080i,1080p
PC-RGB
Format...
