FREQCHIP FR8008XP
FR8008XP is a family of SOC (system on chip) for rapid development of Bluetooth Low Energy related products. It contains Bluetooth V5.0 (LE Mode) fully compliant system with Freqchip designed firmware and software stack. With Freqchip’s innovational technology, FR8008XP integrates, PMU (Li-battery charger + LDO), QSPI flash ROM with XIP mode, I2C, UART, GPIO, ADC, USB OTG, PWM all in a single chip, which provides customer with: 1.| Part No. | FR8008XP |
|---|---|

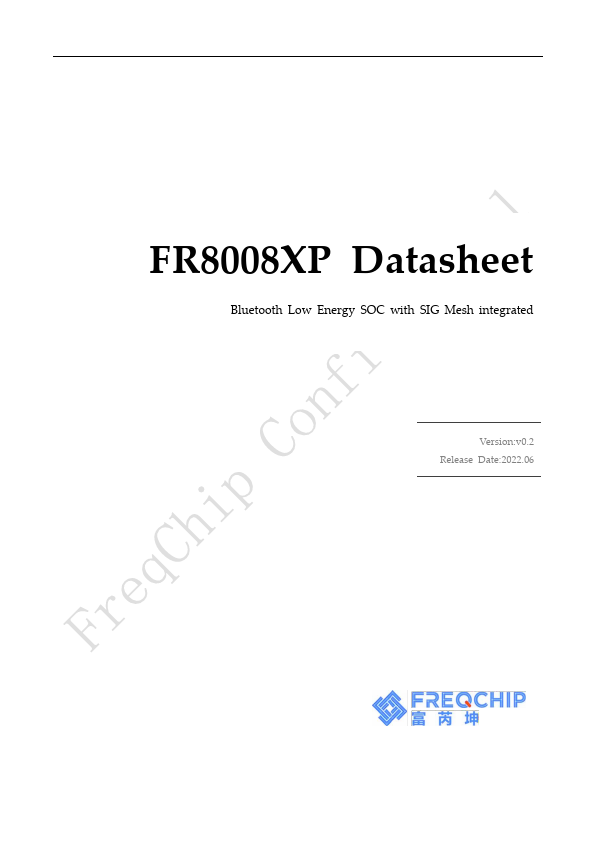

| Datasheet | FR8008XP Download |
| Manufacturer | FREQCHIP |
| Description | Bluetooth Low Energy SOC |
| Buy | Stock & Price |
DESCRIPTION
Users can develop various applications based on embedded 32-bits high performance MCU. competitive power consumption 2. stable connection 3. low-cost BOM The Bluetooth Smart firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). Furthermore, application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Glucose, Human Interface Device (HID) and SDK (include drivers, OS API, etc. ) are supported. The SDK has integrated SIG Mesh for networking application.FEATURES
● Compliant with Bluetooth Specification V5.0 LE, support 2M, 1M, 500K and 125K data rate● Embedded 32-bits Processor
● up to 96Mhz speed
● Memory
● Internal mask 128KB ROM
● Up to 128Mb Flash ROM for user space software and data
● 64KB SRAM + 2M PSRAM
● Integrated Battery Charger
● Integrated DC-DC Regulator
● Interface:
● GPIO
● UART
● SPI/QSPI
● I2C
● PWM
● USB OTG
● ROM Software:
● bootloader
● BLE Profile & Protocol: GATT, LM, LC, etc.
