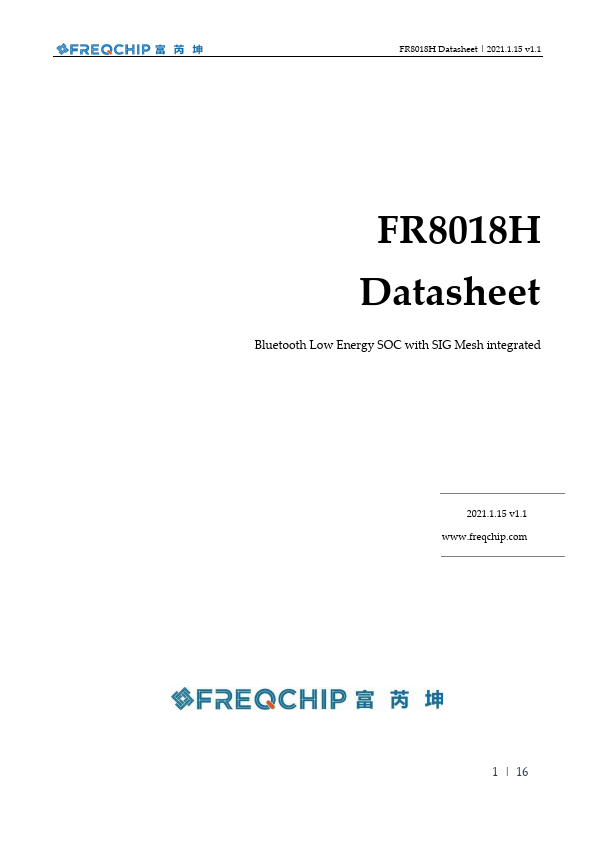

FREQCHIP FR8018H
FR8018H is a SOC (system on chip) for rapid development of Bluetooth Low Energy related products. It contains Bluetooth V5.0 (LE Mode) fully compliant system with Freqchip designed firmware and software stack. With Freqchip’s innovational technology, FR8018H integrates Audio CODEC, PMU (Li-battery charger + LDO) , SPI flashROM with XIP mode, IIC, UART, GPIO, ADC, PWM all in a single chip, which provides customer with: 1.| Part No. | FR8018H |
|---|---|
| Datasheet | FR8018H Download |
| Manufacturer | FREQCHIP |
| Description | Bluetooth Low Energy SOC |
| Buy | Stock & Price |

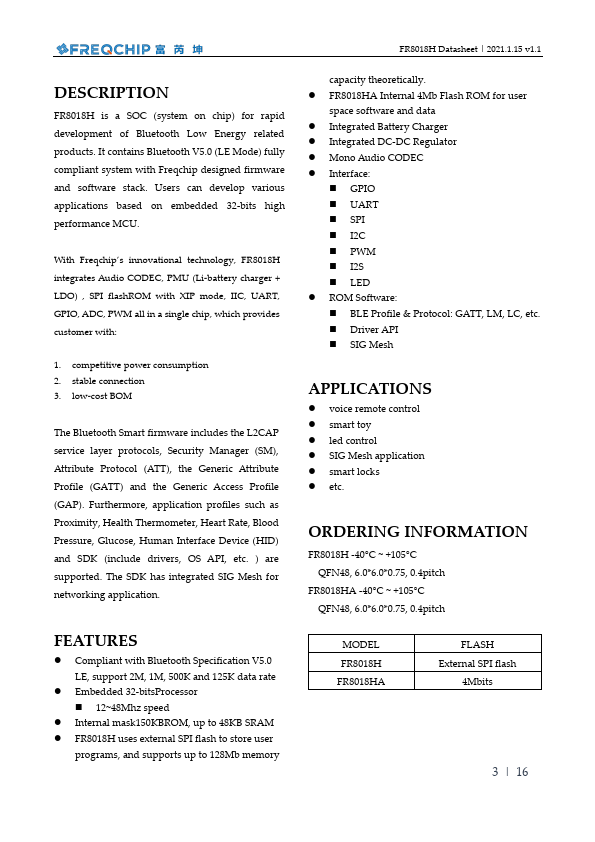

DESCRIPTION
Users can develop various applications based on embedded 32-bits high performance MCU. competitive power consumption 2. stable connection 3. low-cost BOM The Bluetooth Smart firmware includes the L2CAP service layer protocols, Security Manager (SM), Attribute Protocol (ATT), the Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). Furthermore, application profiles such as Proximity, Health Thermometer, Heart Rate, Blood Pressure, Glucose, Human Interface Device (HID) and SDK (include drivers, OS API, etc. ) are supported. The SDK has integrated SIG Mesh for networking application. capacity theoretically.● FR8018HA Internal 4Mb Flash ROM for user space software and data
● Integrated Battery Charger
● Integrated DC-DC Regulator
● Mono Audio CODEC
● Interface:
● GPIO
● UART
● SPI
● I2C
● PWM
● I2S
● LED
● ROM Software:
● BLE Profile & Protocol: GATT, LM, LC, etc.
● Driver API
● SIG Mesh
APPLICATIONS
● voice remote control● smart toy
● led control
● SIG Mesh application
● smart locks
● etc.
