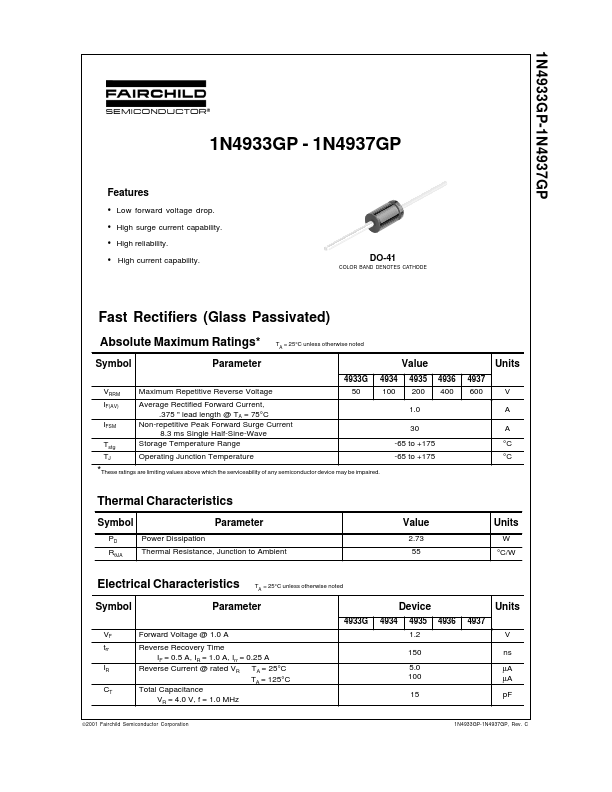

1N4934GP
Features
- Low forward voltage drop.
- High surge current capability.
- High reliability.
- High current capability.
DO-41
COLOR BAND DENOTES CATHODE
Fast Rectifiers (Glass Passivated)
Absolute Maximum Ratings- TA = 25°C unless otherwise noted
Symbol
Parameter
Value
Units
4933G 4934 4935 4936 4937
VRRM IF(AV)
IFSM
Tstg TJ
Maximum Repetitive Reverse Voltage
Average Rectified Forward Current, .375 " lead length @ TA = 75°C
Non-repetitive Peak Forward Surge Current 8.3 ms Single Half-Sine-Wave
Storage Temperature Range
Operating Junction Temperature
100 200 400 600
-65 to +175
°C
-65 to +175
°C
- These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics
Symbol
Parameter
Power Dissipation
RθJA
Thermal Resistance, Junction to Ambient
Value
2.73...
