BCX70J - NPN EPITAXIAL SILICON TRANSISTOR

Fairchild (now onsemi)

Datasheet Details

Part number	BCX70J
Manufacturer	Fairchild (now onsemi)
File Size	31.23 KB
Description	NPN EPITAXIAL SILICON TRANSISTOR
Datasheet	BCX70J Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
BCX70J	NPN EPITAXIAL SILICON TRANSISTOR	Samsung semiconductor
BCX70J	NPN general purpose transistors	NXP
BCX70J	NPN Silicon AF Transistors	Siemens Semiconductor Group
BCX70J	Small Signal Transistor	General Semiconductor
BCX70J	NPN Silicon AF Transistors	Infineon Technologies AG

Other Datasheets by Fairchild (now onsemi)

Part Number	Description
BCX70G	NPN EPITAXIAL SILICON TRANSISTOR
BCX70H	NPN EPITAXIAL SILICON TRANSISTOR
BCX70K	NPN Epitaxial Silicon Transistor
BCX71G	PNP EPITAXIAL SILICON TRANSISTOR
BCX71J	PNP EPITAXIAL SILICON TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

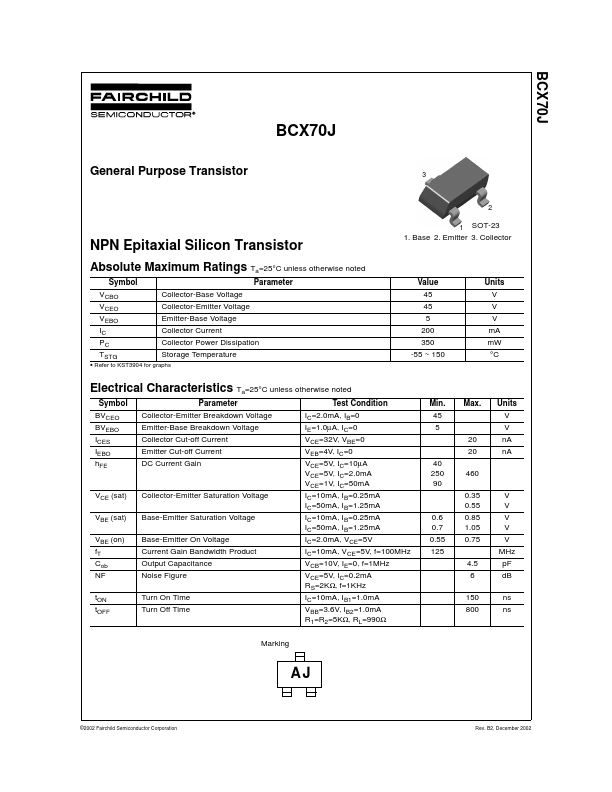

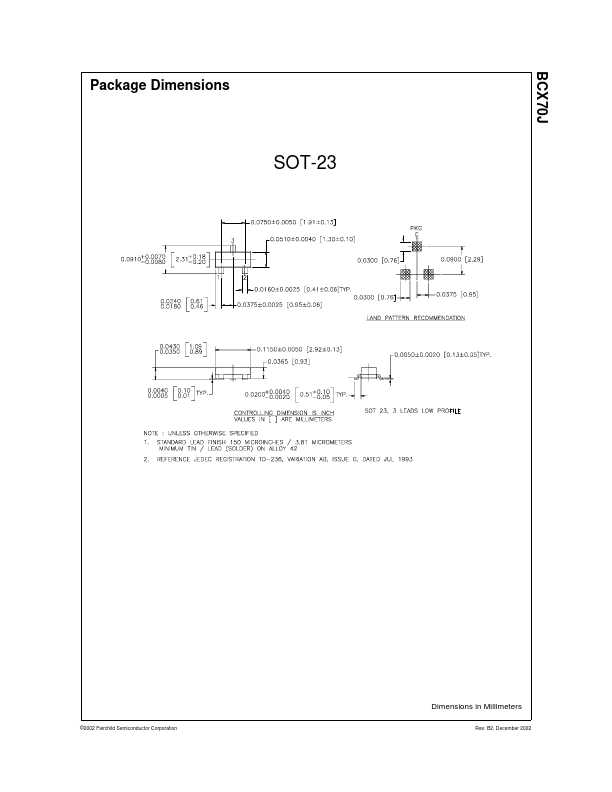

BCX70J GENERAL PURPOSE TRANSISTOR NPN EPITAXIAL SILICON TRANSISTOR SOT-23 ABSOLUTE MAXIMUM RATINGS (TA=25° C) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Dissipation Storage Temperature • Refer to KS3904 for graphs Symbol VCBO VCEO VEBO IC PC T STG Rating 45 45 5 200 350 150 Unit V V V mA mW °C 1. Base 2. Emitter 3. Collector ELECTRICAL CHARACTERISTICS (TA=25° C) Characteristic Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current Emitter Cut-off Current DC Current Gain Symbol BVCEO BVEBO ICES IEBO hFE Test Conditions IC=2.0mA, IB=0 IE=1.0µA, IC=0 VCE=32V, VBE=0 VEB=4V, IC=0 VCE=5V, IC=10µA VCE=5V, IC=2.0mA VCE=1V, IC=50mA IC=10mA, IB=0.25mA IC=50mA, IB=1.25mA IC=10mA, IB=0.
