FCD9N60NTM - N-Channel MOSFET

Fairchild (now onsemi)

General Description

The SupreMOS MOSFET, Fairchild’s next generation of high voltage super-junction MOSFETs, employs a deep trench filling process that differentiates it from preceding multi-epi based technologies.

Key Features

RDS(on) = 0.330Ω ( Typ. )@ VGS = 10V, ID = 4.5A.
Ultra Low Gate Charge (Typ. Qg = 17.8nC).
Low Effective Output Capacitance.
100% Avalanche Tested.
RoHS Compliant SupreMOSTM February 2010.

📥 Download Datasheet

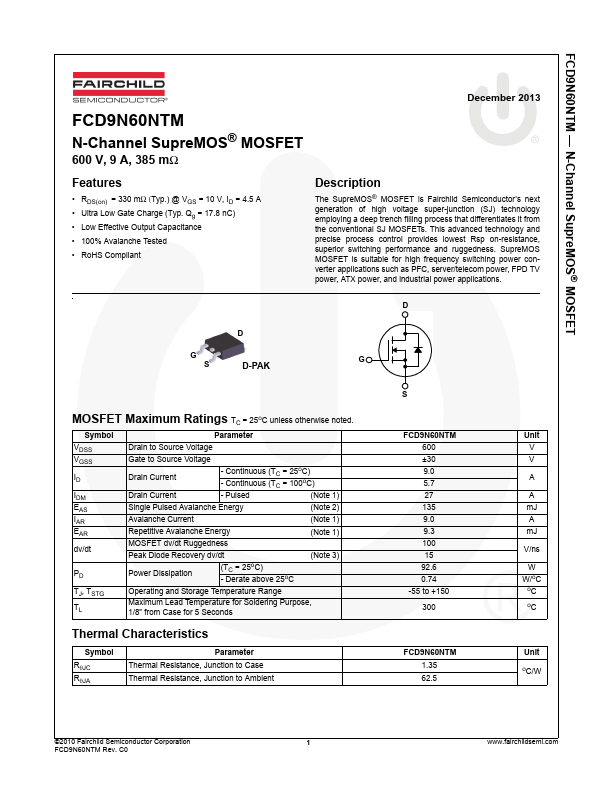

FCD9N60NTM n-channel mosfet by Fairchild (now onsemi) - Datasheet Preview

Datasheet Details

Part number	FCD9N60NTM
Manufacturer	Fairchild (now onsemi)
File Size	796.59 KB
Description	N-Channel MOSFET
Datasheet	FCD9N60NTM Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
FCD2250N80Z	N-Channel MOSFET	INCHANGE
FCD260N65S3	N-Channel MOSFET	ON Semiconductor
FCD260N65S3	N-Channel MOSFET	INCHANGE
FCD360N65S3R0	N-Channel MOSFET	ON Semiconductor
FCD4B14	Thermal Fingerprint Sensor with 0.4 mm x 14 mm Sensing Area and Digital Output	ATMEL Corporation

Other Datasheets by Fairchild (now onsemi)

Part Number	Description
FCD900N60Z	N-Channel MOSFET
FCD1300N80Z	MOSFET
FCD2250N80Z	MOSFET
FCD3400N80Z	MOSFET
FCD380N60E	N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

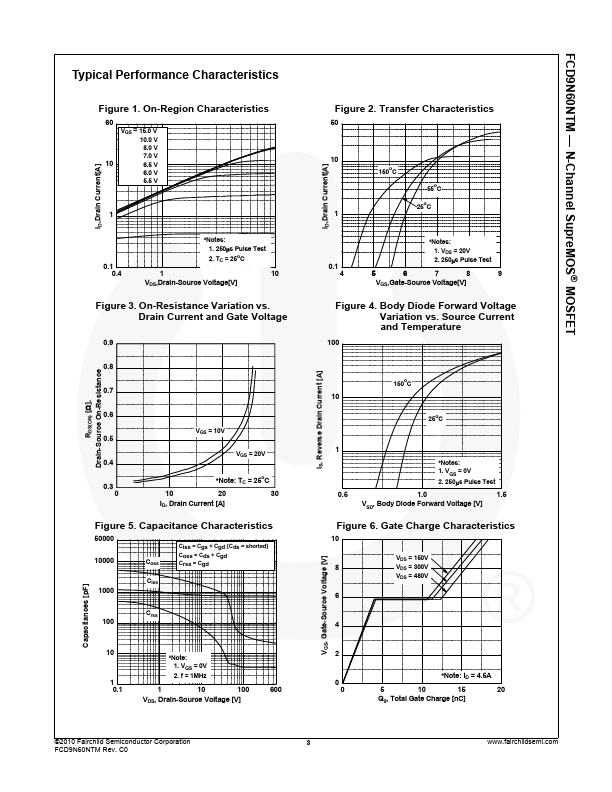

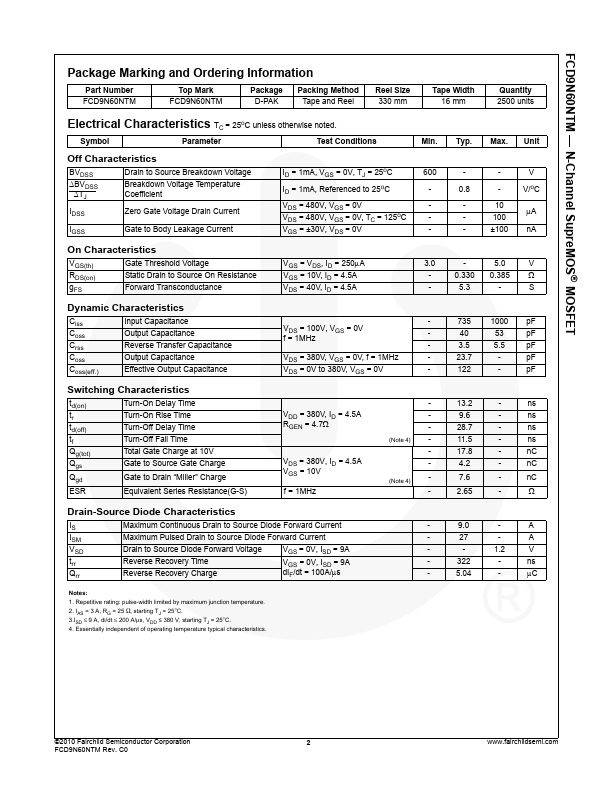

FCD9N60NTM N-Channel MOSFET FCD9N60NTM N-Channel MOSFET 600V, 9A, 0.385mΩ Features • RDS(on) = 0.330Ω ( Typ.)@ VGS = 10V, ID = 4.5A • Ultra Low Gate Charge (Typ.Qg = 17.8nC) • Low Effective Output Capacitance • 100% Avalanche Tested • RoHS Compliant SupreMOSTM February 2010 Description The SupreMOS MOSFET, Fairchild’s next generation of high voltage super-junction MOSFETs, employs a deep trench filling process that differentiates it from preceding multi-epi based technologies. By utilizing this advance technology and precise process control, SupreMOS provide world class Rsp, superior switching performance and ruggedness. This SupreMOS MOSFET fits the industry’s AC-DC SMPS requirements for PFC, server/telecom power, FPD TV power, ATX power, and industrial power applications.
