FDLL600 Description

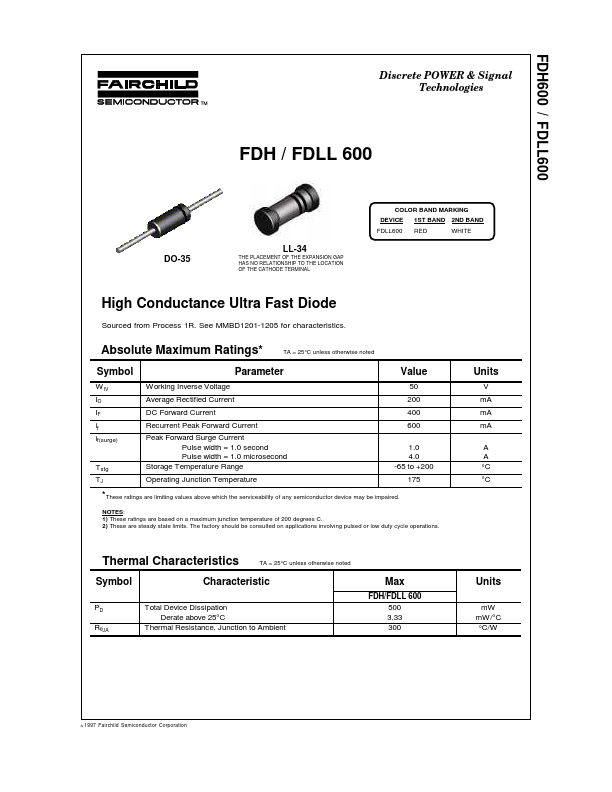

FDH600 / FDLL600 Discrete POWER & Signal Technologies FDH / FDLL 600 DO-35 LL-34 THE PLACEMENT OF THE EXPANSION GAP HAS NO RELATIONSHIP TO THE LOCATION OF THE CATHODE TERMINAL COLOR BAND MARKING DEVICE 1ST BAND 2ND BAND FDLL600 RED WHITE High Conductance Ultra Fast Diode Sourced from Process 1R. See MMBD1201-1205 for characteristics. 1) These ratings are based on a maximum junction temperature of 200 degrees.
