FMS6363 - Low Cost Three Channel High Definition Video Filter Driver

Description

The FMS6363 low-cost video filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device.

Three sixth-order filters provide improved image quality compared to typical lower-order passive solutions.

Features

  • Three Sixth-order 30MHz (HD) Filters.
  • Transparent Input Clamping.
  • Single Video Drive Load (2Vpp, 150Ω = 6δβ).
  • AC or DC-coupled Inputs.
  • AC or DC-coupled Outputs.
  • DC-coupled Outputs Eliminate AC-coupling Capacitors.
  • 5V Only.
  • Robust 8kV ESD Protection.
  • Package SOIC-8.

📥 Download Datasheet

📁 Similar Datasheet

  • FMS6143 - Low-Cost Three-Channel 4th-Order Standard Def nition Video Filter Driver (ON Semiconductor)
  • FMS-109 - Broadband Frequency Doubler (Tyco Electronics)
  • FMS-109 - Broadband Frequency Doubler (MA-COM)
  • FMS006-0001 - SIM Card Reader (Yamaichi Electronics)
  • FMS2001ES1 - Low Loss SPDT Reflective pHEMT MMIC Switch (Filtronic)
  • FMS2001QFN - SPDT Reflective pHEMT MMIC Switch (Filtronic)
  • FMS2002ES1 - SP3T Reflective pHEMT MMIC Switch (Filtronic)
  • FMS2002QFNES1 - SP3T Reflective pHEMT MMIC Switch (Filtronic)
  • FMS2003ES1 - SP4T Reflective pHEMT MMIC Switch (Filtronic)
  • FMS2003QFN-1 - High Power Reflective GaAs SP4T Switch (Filtronic)
Other Datasheets by Fairchild Semiconductor
  • FMS6363A - Three-Channel 7th-Order High-Definition VoltagePlus Video Filter Driver
  • FMS6364A - Low-Cost Four-Channel Standard Definition (SD) & High (HD) Definition Video Filter Driver
  • FMS6366 - Selectable YPbPr HD/SD 4:2:2 Video Filter Driver
  • FMS6303 - Low-Cost 3-Channel Video Filter Driver
  • FMS6346 - 6th Order SD/HD Video Filter Driver
  • FMS6141 - Single-Channel 4th-Order Standard Definition Video Filter Driver
  • FMS6143 - Low Cost Three Channel 4th Order Standard Definition Video Filter Driver
  • FMS6143A - Low-Cost Three-Channel 6th-Order Standard Definition Video Filter Driver

Full PDF Text Transcription

Click to expand full text

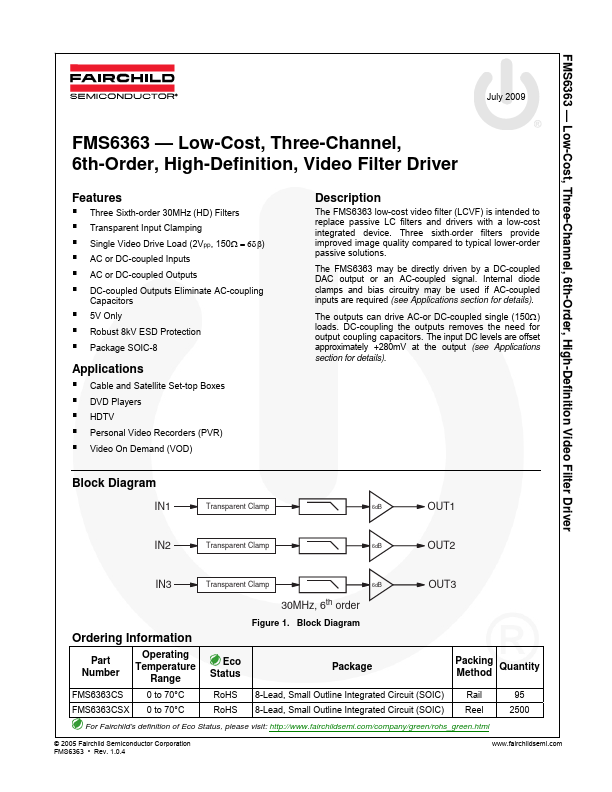

FMS6363 — Low-Cost, Three-Channel, 6th-Order, High-Definition Video Filter Driver July 2009 FMS6363 — Low-Cost, Three-Channel, 6th-Order, High-Definition, Video Filter Driver Features ƒ Three Sixth-order 30MHz (HD) Filters ƒ Transparent Input Clamping ƒ Single Video Drive Load (2Vpp, 150Ω = 6δβ) ƒ AC or DC-coupled Inputs ƒ AC or DC-coupled Outputs ƒ DC-coupled Outputs Eliminate AC-coupling Capacitors ƒ 5V Only ƒ Robust 8kV ESD Protection ƒ Package SOIC-8 Applications ƒ Cable and Satellite Set-top Boxes ƒ DVD Players ƒ HDTV ƒ Personal Video Recorders (PVR) ƒ Video On Demand (VOD) Description The FMS6363 low-cost video filter (LCVF) is intended to replace passive LC filters and drivers with a low-cost integrated device.
