FZT749 datasheet by Fairchild (now onsemi).
| Part number | FZT749 |
|---|---|
| Datasheet | FZT749_FairchildSemiconductor.pdf |
| File Size | 149.82 KB |
| Manufacturer | Fairchild (now onsemi) |
| Description | PNP Low Saturation Transistor |
|
|

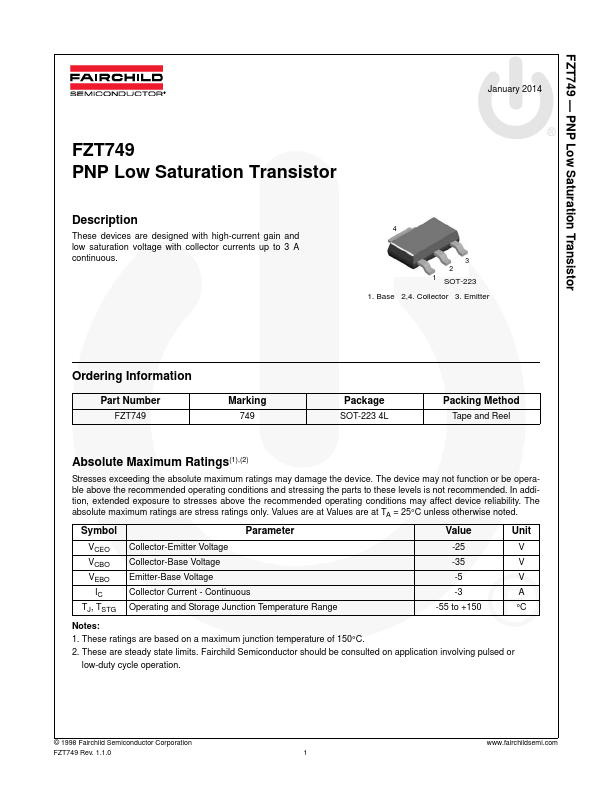

These devices are designed with high-current gain and low saturation voltage with collector currents up to 3 A continuous. Emitter Ordering Information Part Number FZT749 Marking 749 Package SOT-223 4L Packing Method Tape and Reel Ratings(1),(2) Stresses exceeding the ratings may damage the device. The device may not function or be operable above the remended operating conditions and stressing the parts to these...
| Brand Logo | Part Number | Description | Other Manufacturers |
|---|---|---|---|
 |
FZT749 | 25V PNP MEDIUM POWER TRANSISTOR | Diodes |
 |
FZT749 | Medium Power Transistor | Kexin |
