HCPL-0600 Datasheet High Speed-10 Mbit/s Logic Gate Optocouplers

Manufacturer: Fairchild (now onsemi)

Overview: HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS HCPL-0600.

Datasheet Details

Part number	HCPL-0600
Manufacturer	Fairchild (now onsemi)
File Size	616.46 KB
Description	HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS
Datasheet	HCPL-0600_FairchildSemiconductor.pdf

General Description

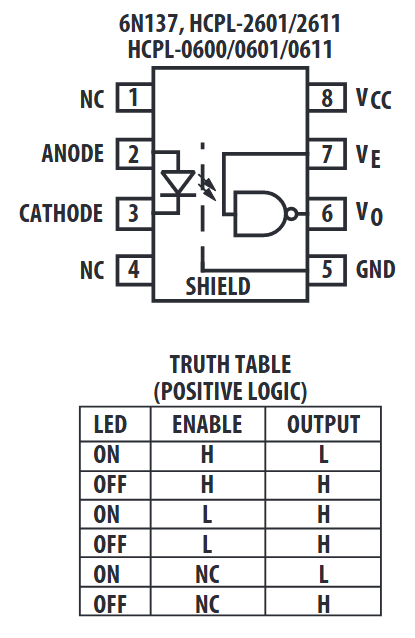

The HCPL-0600/0601optocouplers consist of a 870 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output.

The devices are housed in a compact small-outline package.

This output

Key Features

an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/µs. HCPL-0601.
