HCPL-2611 Datasheet High Speed-10 Mbit/s Logic Gate Optocouplers

Manufacturer: Fairchild (now onsemi)

Overview: HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS SINGLE-CHANNEL 6N137 HCPL-2601.

Datasheet Details

Part number	HCPL-2611
Manufacturer	Fairchild (now onsemi)
File Size	215.36 KB
Description	HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS
Datasheet	HCPL-2611_FairchildSemiconductor.pdf

General Description

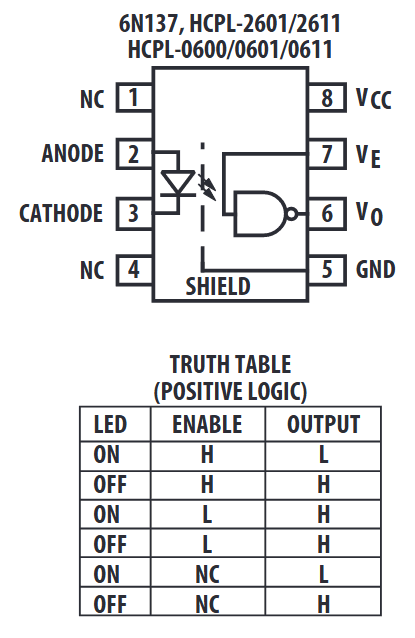

The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output.

This output

Key Features

an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/µs. The HCPL- 2601 and HCPL- 2631 has a minimum CMR of 5 kV/µs. The HCPL-2611 has a minimum CMR of 10 kV/µs. 8 8 1 DUAL-.
