Fairchild Semiconductor HCPL-2631
The HCPL- 2601 and HCPL- 2631 has a minimum CMR of 5 kV/µs. The HCPL-2611 has a minimum CMR of 10 kV/µs.| Part No. | HCPL-2631 |
|---|---|
| Datasheet | HCPL-2631 Download |
| Manufacturer |  Fairchild Semiconductor |
| Description | HIGH SPEED-10 MBit/s LOGIC GATE OPTOCOUPLERS |
| Buy | Stock & Price |
DESCRIPTION
The 6N137, HCPL-2601/2611 single-channel and HCPL-2630/2631 dual-channel optocouplers consist of a 850 nm AlGaAS LED, optically coupled to a very high speed integrated photodetector logic gate with a strobable output. This output features an open collector, thereby permitting wired OR outputs. The coupled parameters are guaranteed over the temperature range of -40°C to +85°C. A maximum input signal of 5 mA will provide a minimum output sink current of 13 mA (fan out of 8). An internal noise shield provides superior common mode rejection of typically 10 kV/µs. The HCPL-2611 has a minimum CMR of 10 kV/µs. 8 8 1 DUAL-CHANNEL HCPL-2630 HCPL-2631 8 1 1FEATURES
●●
●
●
●
●
●

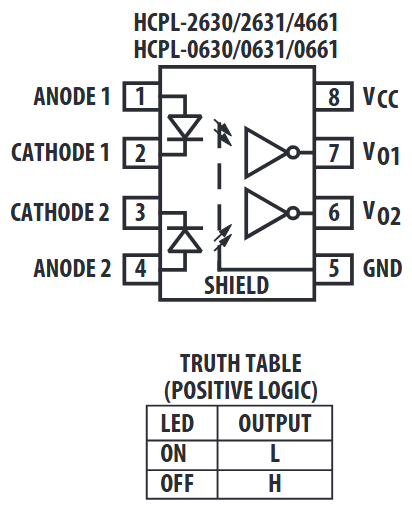

● Very high speed-10 MBit/s Superior CMR-10 kV/µs Double working voltage-480V Fan-out of 8 over -40°C to +85°C Logic gate output Strobable output Wired OR-open collector U.L. recognized (File # E90700) N/C 1 8 VCC + 1 VF1 8 VCC + 2 VF _ 3 7 VE _ 2 7 V01 6 VO _ V 3 6 V02 F2 N/C 4 5 GND + 4 5 GND
APPLICATIONS
...
