KA1M0680RB - Fairchild Power Switch(FPS)

Download the KA1M0680RB datasheet PDF. This datasheet also covers the KA1M0680B variant, as both devices belong to the same fairchild power switch(fps) family and are provided as variant models within a single manufacturer datasheet.

Description

The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components.

The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC.

Features

  • Precision fixed operating frequency.
  • KA1M0680B,KA1M0680RB (67KHz).
  • KA1H0680B,KA1H0680RFB (100KHz).
  • Pulse by pulse over current limiting.
  • Over load protection.
  • Over voltage protection (Min. 23V).
  • Internal thermal shutdown function.
  • Under voltage lockout.
  • Internal high voltage sense FET.
  • Latch up mode (KA1M0680B,KA1H0680B).
  • Auto restart (KA1M0680RB,KA1H0680RFB).
  • Soft start.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (KA1M0680B-FairchildSemiconductor.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
KA1M0880B Power Switch Fairchild
KA100M317 Three Terminal Positive Voltage Regulator Kexin
KA100O015E-BJTT 2CKE DDP Mobile DDR SDRAM Samsung semiconductor
KA101-01 400 - 2700MHz Medium Power Amplifier KCB
KA101-10 400 - 2700MHz Medium Power Amplifier KCB

Other Datasheets by Fairchild (onsemi)

Part Number Description
KA1M0680 SMART POWER SWITCH
KA1M0680B Fairchild Power Switch(FPS)
KA1M0265R Fairchild Power Switch(FPS)
KA1M0280R SPS
KA1M0280RB Fairchild Power Switch(FPS)

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

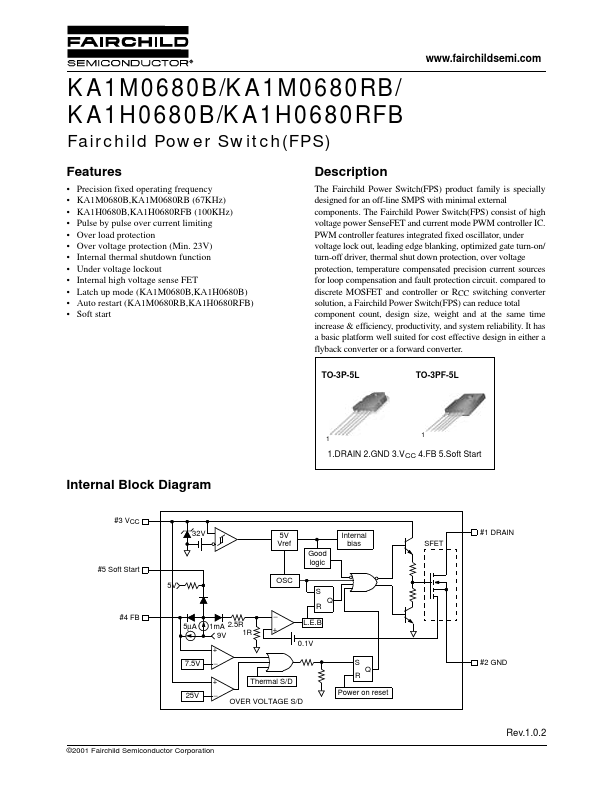

KA1M0680B/KA1M0680RB/ KA1H0680B/KA1H0680RFB Fairchild Power Switch(FPS) www.fairchildsemi.com Features • Precision fixed operating frequency • KA1M0680B,KA1M0680RB (67KHz) • KA1H0680B,KA1H0680RFB (100KHz) • Pulse by pulse over current limiting • Over load protection • Over voltage protection (Min. 23V) • Internal thermal shutdown function • Under voltage lockout • Internal high voltage sense FET • Latch up mode (KA1M0680B,KA1H0680B) • Auto restart (KA1M0680RB,KA1H0680RFB) • Soft start Description The Fairchild Power Switch(FPS) product family is specially designed for an off-line SMPS with minimal external components. The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC.
