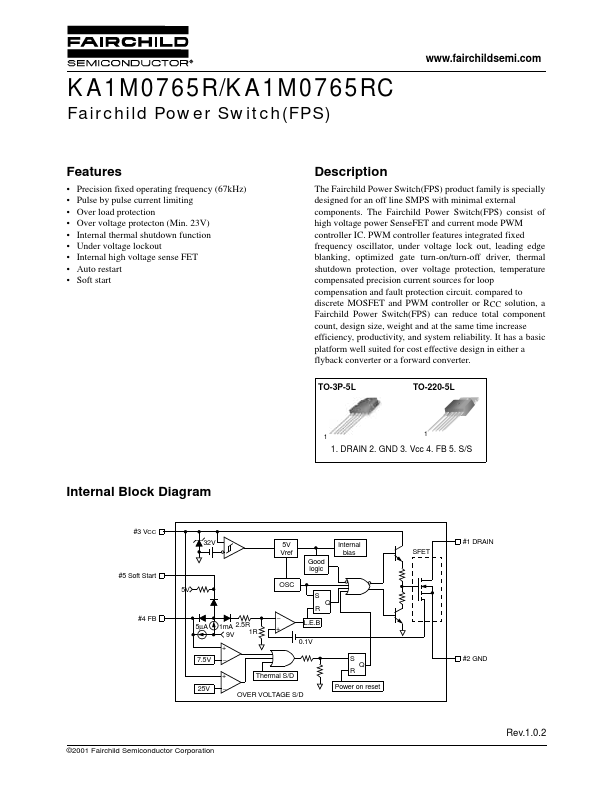

Fairchild Semiconductor KA1M0765RC
The Fairchild Power Switch(FPS) product family is specially designed for an off line SMPS with minimal external components. The Fairchild Power Switch(FPS) consist of high voltage power SenseFET and current mode PWM controller IC.| Part No. | KA1M0765RC |
|---|---|
| Datasheet | KA1M0765RC Download |
| Manufacturer |  Fairchild Semiconductor |
| Description | Fairchild Power Switch(FPS) |
| Buy | Stock & Price |
FEATURES
● Precision fixed operating frequency (67kHz)● Pulse by pulse current limiting
● Over load protection
● Over voltage protecton (Min. 23V)
● Internal thermal shutdown function
● Under voltage lockout
● Internal high voltage sense FET
● Auto restart
● Soft start
DESCRIPTION
PWM controller features integrated fixed frequency oscillator, under voltage lock out, leading edge blanking, optimized gate turn-on/turn-off driver, thermal shutdown protection, over voltage protection, temperature compensated precision current sources for loop compensation and fault protection circuit. compared to discrete MOSFET and PWM controller or RCC solution, a Fairchild Power Switch(FPS) can reduce total component count, design size, weight and at the same time increase efficiency, productivity, and system reliability. It has a basic platform well suited for cost effective design in either a flyback converter or a forward converter. TO-3P-5L TO-220-5L 1 1 1. DRAIN 2. GND 3. Vcc 4. FB 5. S/S Internal...
