MBR0530 - Schottky Rectifier

Key Features

  • 0.5 Ampere, low forward voltage, less than 430mV.
  • Compact surface mount package with the same footprint as mini-melf SOD123 Color Band Denotes Cathode Mark: B3 Absolute Maximum Ratings.
  • Symbol VRRM IF(AV) IFSM Ta = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non Repetitive Peak Forward Current (Surge applied at rated load conditions half wave, single, phase, 60Hz) Storage Temperature Range Operating Juncti.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR0530 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER EIC
MBR0530 SCHOTTKY DIODE International Rectifier
MBR0530 Schottky Barrier Rectifier Crownpo
MBR0530 Schottky Barrier Diode JCET
MBR0530 SCHOTTKY BARRIER DIODE SMC Diode

Other Datasheets by Fairchild (now onsemi)

Part Number Description
MBR0520L SCHOTTKY RECTIFIER
MBR0540 1.0 Ampere Schottky Power Rectifiers
MBR1035 (MBR1035 - MBR1060) Rectifiers
MBR1045 (MBR1035 - MBR1060) Rectifiers
MBR1050 (MBR1035 - MBR1060) Rectifiers

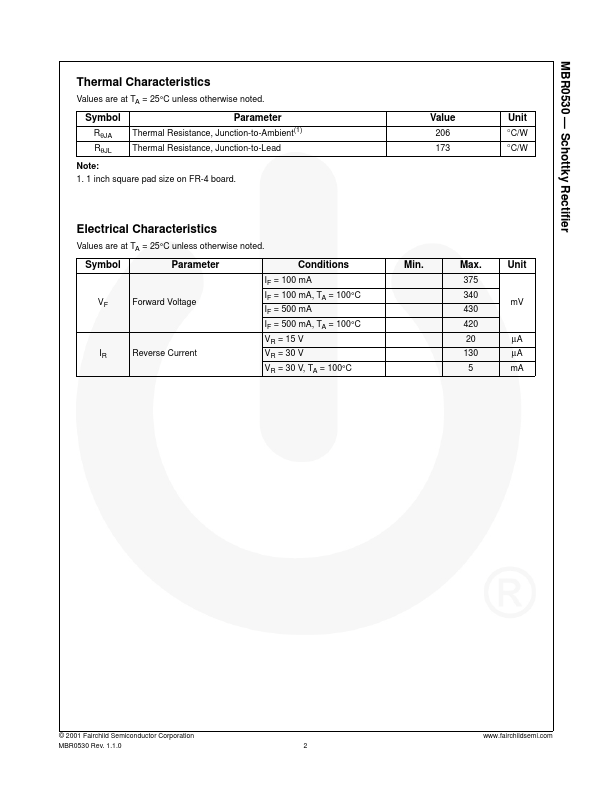

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
MBR0530 Schottky Rectifier MBR0530 Schottky Rectifier Features • 0.5 Ampere, low forward voltage, less than 430mV • Compact surface mount package with the same footprint as mini-melf SOD123 Color Band Denotes Cathode Mark: B3 Absolute Maximum Ratings * Symbol VRRM IF(AV) IFSM Ta = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non Repetitive Peak Forward Current (Surge applied at rated load conditions half wave, single, phase, 60Hz) Storage Temperature Range Operating Junction Temperature Value 30 500 5.5 Units V mA A TSTG TJmax -65 to +150 -65 to +125 °C °C These ratings are limiting values above which the serviceability of any semiconductor device may by impaired.
