MBR0540 - 1.0 Ampere Schottky Power Rectifiers

Key Features

  • 0.5 ampere; forward voltage less than 460 mv. 400 milliwatt Power Dissipation package. Compact surface mount package with same footprint as mini-melf. SOD123 SOD123 Color Band Mark: Denotes B4 Cathode Mark: B4 Actual Size Schottky Rectifiers Absolute Maximum Ratings.
  • Symbol VRRM IF(AV) IFSM Tstg TJ TA = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current half wav.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MBR0540 Schottky Barrier Rectifier Crownpo
MBR0540 Schottky Barrier Diode JCET
MBR0540 SCHOTTKY RECTIFIER DIODE UTC
MBR0540 Schottky Rectifier MCC
MBR0540 SCHOTTKY BARRIER DIODE SMC Diode

Other Datasheets by Fairchild (now onsemi)

Part Number Description
MBR0520L SCHOTTKY RECTIFIER
MBR0530 Schottky Rectifier
MBR1035 (MBR1035 - MBR1060) Rectifiers
MBR1045 (MBR1035 - MBR1060) Rectifiers
MBR1050 (MBR1035 - MBR1060) Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

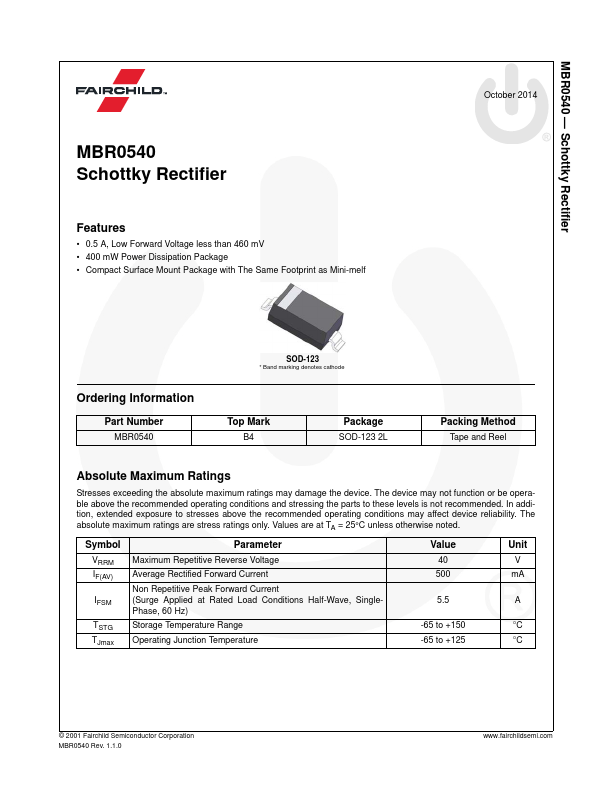

MBR0540 MBR0540 Features • • • 0.5 ampere; forward voltage less than 460 mv. 400 milliwatt Power Dissipation package. Compact surface mount package with same footprint as mini-melf. SOD123 SOD123 Color Band Mark: Denotes B4 Cathode Mark: B4 Actual Size Schottky Rectifiers Absolute Maximum Ratings* Symbol VRRM IF(AV) IFSM Tstg TJ TA = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current half wave, single phase, 60 Hz Storage Temperature Range Operating Junction Temperature Value 40 500 5.5 -65 to +150 -65 to +125 Units V mA A °C °C *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
