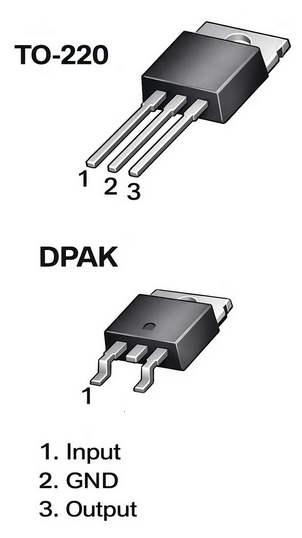

Features - - - - - Output Current up to 1A Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating Area Protection Description The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external ponents to obtain adjustable voltages and currents. TO-220 1 D-PAK 1 1. Input 2. GND 3. Output Internal Block Digram Rev. 1.0.0 ©2001 Fairchild Semiconductor Corporation KA78XX/KA78XXA Absolute Maximum Ratings Parameter Input Voltage (for VO = 5V to 18V) (for VO = 24V)...
