KA78M05 Overview

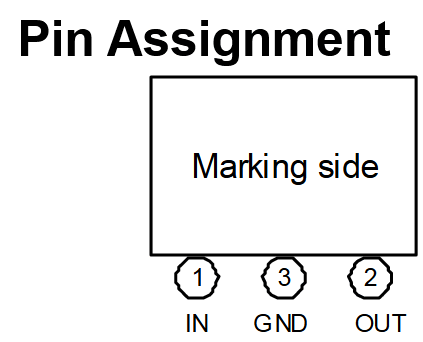

Output Current up to 0.5 A Output Voltages of 5 V Thermal Overload Protection Short-Circuit Protection Output Transistor Safe Operating Area (SOA) Protection The KA78M05 / LM78M05 / MC78M05 series of threeterminal positive regulators is available in the TO-220 / DPAK packages, making it useful in a wide range of applications. TO-220 GND 1 D-PAK GND 1 1. Refer to below figure for TM / TF suffix of DPAK packing option.
KA78M05 Key Features
- Output Current up to 0.5 A
- Output Voltages of 5 V
- Thermal Overload Protection
- Short-Circuit Protection
- Output Transistor Safe Operating Area (SOA) Protection
