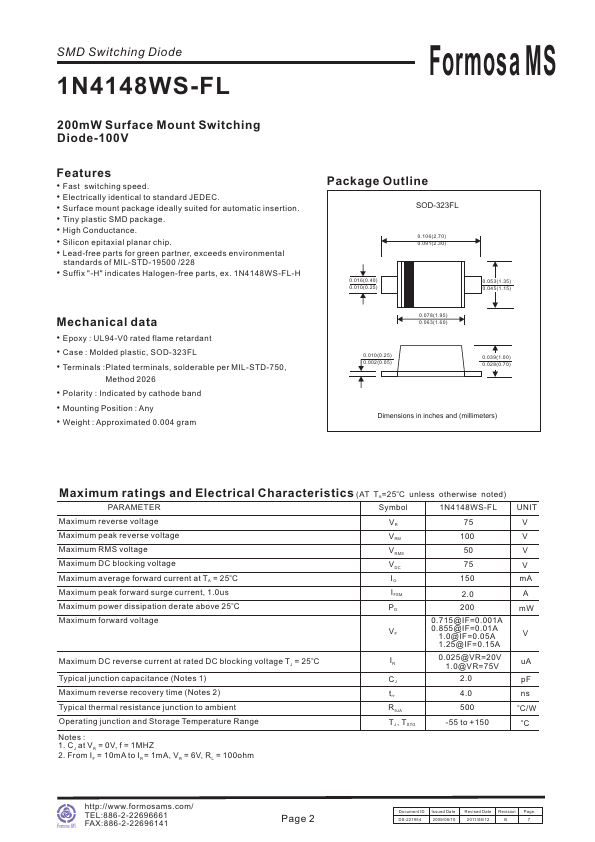

1N4148WS-FL
1N4148WS-FL is SMD Switching Diode manufactured by Formosa MS.
SMD Switching Diode
Formosa MS
200mW Surface Mount Switching Diode-100V
Features
- Fast switching speed.
- Electrically identical to standard JEDEC.
- Surface mount package ideally suited for automatic insertion.
- Tiny plastic SMD package.
- High Conductance.
- Silicon epitaxial planar chip.
- Lead-free parts for green partner, exceeds environmental standards of MIL-STD-19500 /228
- Suffix "-H" indicates Halogen-free parts, ex. 1N4148WS-FL-H
Mechanical data
- Epoxy : UL94-V0 rated flame retardant
- Case : Molded plastic, SOD-323FL
- Terminals :Plated terminals, solderable per MIL-STD-750,
Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight...
