Formosa MS 1N4729A
Axial Lead Zener Diode
| Part No. | 1N4729A |
|---|---|
| Datasheet | 1N4729A Download |
| Manufacturer |  Formosa MS |
| Description | Axial Lead Zener Diode |
| Buy | Stock & Price |

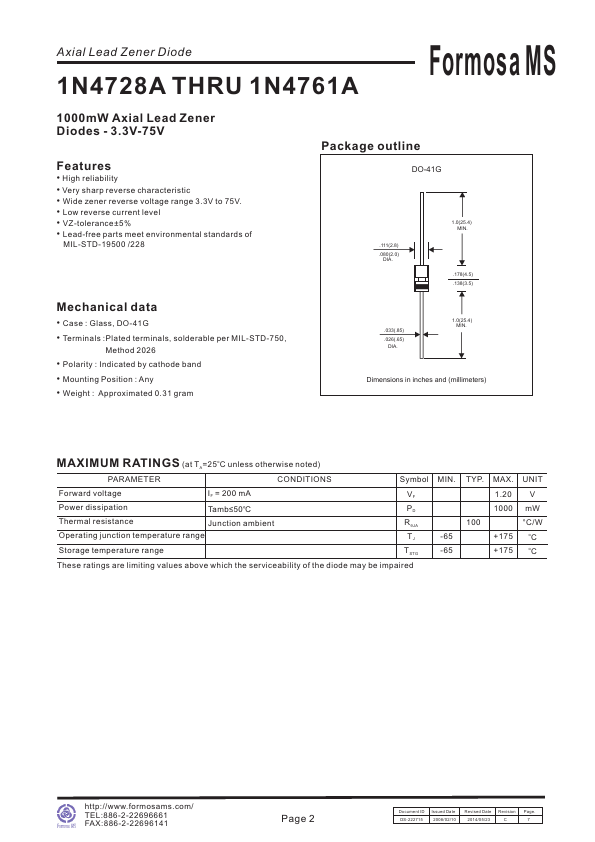

FEATURES
● High reliability● Very sharp reverse characteristic
● Wide zener reverse voltage range 3.3V to 75V.
● Low reverse current level
● VZ-tolerance±5%
● Lead-free parts meet environmental standards of MIL-STD-19500 /228 Package outline DO-41G .111(2.8) .080(2.0) DIA. 1.0(25.4) MIN. .178(4.5) .138(3.5) Mechanical data
● Case : Glass, DO-41G
● Terminals :Plated terminals, solderable per MIL-STD-750, Method 2026
● Polarity : Indicated by cathode band
● Mounting Position : Any
● Weight : Approximated 0.31 gram .033(.85) .026(.65) DIA. 1.0(25.4) MIN. Dimensions in inches and (millimeters)

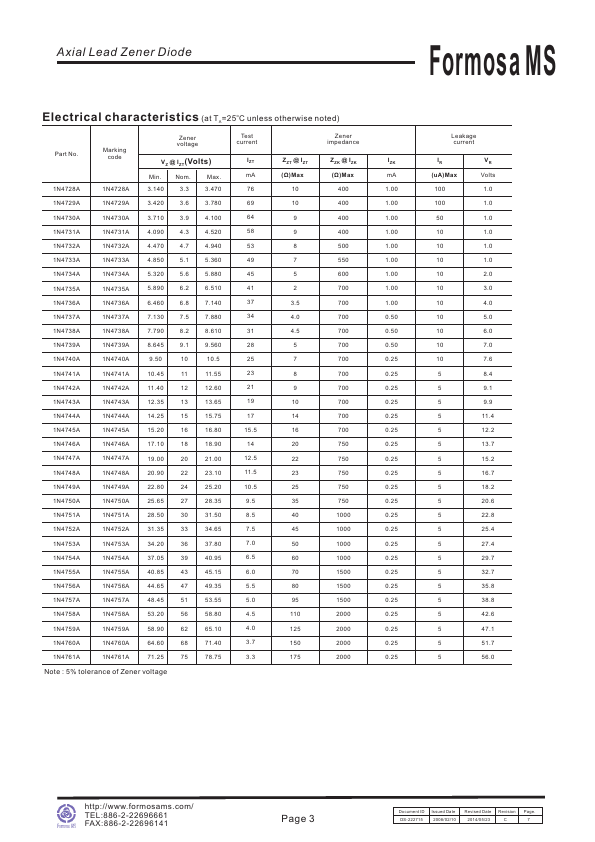

MAXIMUM RATINGS
(at TA=25oC unless otherwise noted) PARAMETER CONDITIONS Symbol Forward voltage IF = 200 mA VF Power dissipation Tamb≤50℃ PD Thermal resistance Junction ambient RθJA Operating junction temperature range TJ Storage temperature range TSTG These ratings are limiting values above which the serviceability of the diode may be impaired MIN. -65 -65 TYP. 100 MAX. UNIT 1.20 V 1000 mW +175 +175 °C/W oC oC TEL:886-2-22696661 FAX:886-2-22696141 Page 2 Document ID Issued Date DS-222715 2008/02/10 Revised Date Revision 2014/05/23 C Page.
