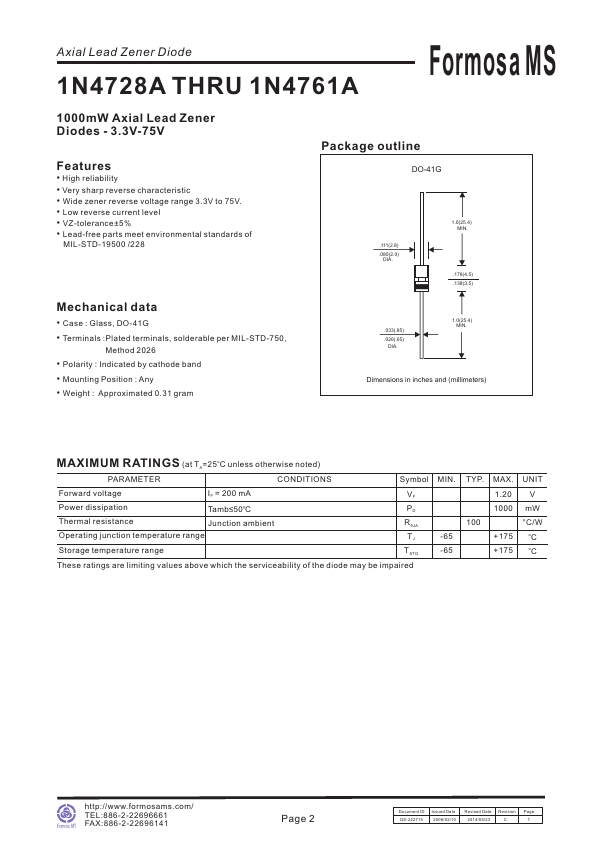

Axial Lead Zener Diode
1N4728A THRU 1N4761A
Formosa MS
1000mW Axial Lead Zener Diodes
- 3.3V-75V
Features
- High reliability
- Very sharp reverse characteristic
- Wide zener reverse voltage range 3.3V to 75V.
- Low reverse current level
- VZ-tolerance±5%
- Lead-free parts meet environmental standards of
MIL-STD-19500 /228
Package outline
DO-41G
.111(2.8)
.080(2.0) DIA.
1.0(25.4) MIN.
.178(4.5) .138(3.5)
Mechanical data
- Case : Glass, DO-41G
- Terminals :Plated terminals, solderable per MIL-STD-750,
Method 2026
- Polarity : Indicated by cathode band
- Mounting Position : Any
- Weight : Approximated 0.31 gram
.033(.85)
.026(.65) DIA.
1.0(25.4) MIN.
Dimensions in inches and...
